Pressure Control in Supercritical Extraction

Supercritical fluids offer many advantages for the extraction process, particularly when using supercritical carbon dioxide (SCO2). When SCO2 is used to extract essential oils from botanicals the final product will remain free from the potentially harmful solvents used with older extraction technologies. Carbon dioxide is relatively inexpensive, widely available, and can be recycled and reused indefinitely. The schematic shows a typical batch extraction process. The system is initially charged with liquid CO2 from a commonly available bottle (with siphon tube). The CO2 is mixed with any desired co-solvents that may be required to assist in extracting the targeted media. Ethanol is often used as a co-solvent as it offers many of the same low toxicity benefits of carbon dioxide.

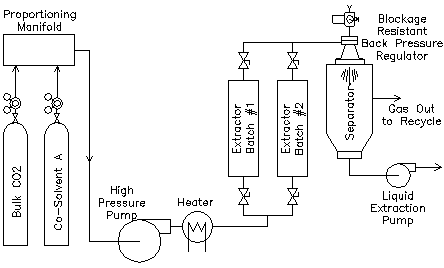

Supercritical Extraction Schematic 2

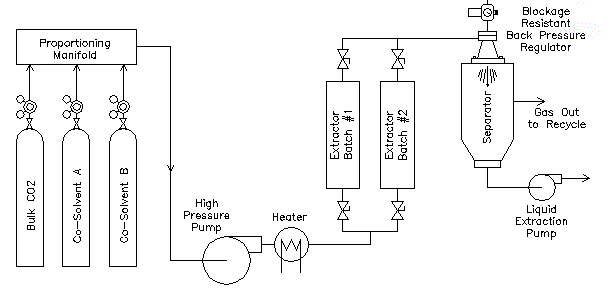

Supercritical Extraction Batch Schematic

A pump is used to increase the pressure of the carbon dioxide to a point above the supercritical pressure. A typical system might run its extraction pressures anywhere between 1800 and 5000psi. This pressure can be adjusted to allow greater selectivity in which media is targeted to be extracted. A heater is used to increase the temperature of the CO2 to push it past the sub critical point and into the supercritical stage. The supercritical extraction then occurs as the SCO2 and co-solvents move through the media in one of the two batch extractors. After exiting the extractor the supercritical fluid pressure must be let down to a pressure that can be tolerated by the construction of the separator vessel and is at a low enough pressure to ensure that the entrained essential oils will be allowed to drop out completely.

This pressure let down is best achieved by using a back pressure regulator (BPR). The back pressure regulator performs two functions. The first is maintaining the extraction vessel pressure at the desired supercritical extraction pressure independent of the flow system rate. Secondly the BPR creates the pressure drop required to step the supercritical extraction fluid pressure down to the level required by the separator. The expansion of the supercritical fluid during this pressure let down stage is often problematic. The Joules-Thompson effect causes a dramatic temperature drop to occur which can lead to ice formation that will block the internal passages of the BPR.

The new BR1 back pressure regulator from Equilibar uses a patent pending technology to resist the build up of ice in its internal passages. This technology is due to the innovative mechanical workings of the regulator and does not rely on external heating. The design also resists blockage from oils that have become highly viscous due to the extreme cold of the expanding gasses. After the pressure let down step the targeted oils are separated and the CO2 and co-solvents may be removed for recycling. The schematic shown has been simplified for illustration purposes.

Request a Quote Download Brochure



Accurate Control for Precision Extraction Pressures

The Equilibar BR1 controls pressure very accurately and is able to hold the extraction pressure precisely at the required set point regardless of fluctuations in the system flow rate or variations in the system temperature. This allows for more precise targeting of the desired extract. The BR1 can achieve this precision because it uses innovative direct diaphragm sealing technology coupled to internal passages designed to resist the formation of ice blockages. A responsive flexible diaphragm is the only internal moving part. The diaphragm is nearly frictionless in its movement and does not have accuracy robbing hysteresis and “stiction” (static friction) like traditional needle, ball, gate, or butterfly regulating valves have. The diaphragm has very low mass and will respond to changes in system flow rate within milliseconds.

Request a Quote Download Brochure

Rugged Design Handles Extreme Temperatures and Chemistries

The BR1 body is manufactured from bar stock stainless steel 316L for maximum durability and chemical compatibility. The flexible diaphragm material is carefully selected to match your application temperature and media. Temperature ranges to 325 C can be directly controlled with the BR1. While typically not required, this does allow for external heat tracing to be directly applied. The availability of PTFE and Polyimide/Kapton diaphragm materials means that almost all supercritical extraction fluids and co-solvent combinations can be regulated with the BR1.

Learn more about the blockage resistant BR1 regulator.

Learn more about using fractional distillation to separate multiple extracts at multiple pressures

Learn more about carbon sequestration and other supercritical CO2 applications

Video Shows a BR Expelling Ice and Oil During Supercritical Batch Extraction

Click on the video link below to see an Equilibar back pressure regulator maintaining the pressure in a supercritical batch extraction system. We have removed the bottom plate from the regulator so you can watch the ice forming from the CO2 gas expansion and cooling from the Joules Thomson effect. The BR regulator easily sheds the ice formations to remain blockage free so that the back pressure is accurately maintained.

Click here for a longer video showing even more details about controlling pressure in an supercritical extraction system.

Request a Quote Download Brochure

Supercritical Extraction Blockage Resistant Back Pressure Regulator

The Equilibar BR1 blockage resistant back pressure regulator is shown above with a flange connection on the discharge port. This flange allows the output of the regulator to discharge directly into the separator vessel. This further eliminates the possibility of blockages forming in the system tubing.
BR1 Supercritical CO2 BPR brochure thumbnail

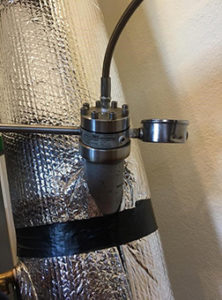

Plant matter extractor in Arizona uses Blockage Resistant back pressure regulator to maintain extraction pressure. The outflow of the BPR contains ice and extraction oils, and discharge directly into the separator vessel to avoid blockage issues. No heat jackets are used on the BPR. See plant matter extraction case study.
