Equilibar Sanitary Back Pressure Regulators

Hygienic Back Pressure Regulators and Flow Control Valves

Equilibar is proud to offer sanitary back pressure regulators with hygienic features for biopharmaceutical and sanitary industrial applications.

The Equilibar® FD Series sanitary valves are machined from stainless steel or Hastelloy and are suitable for use in industries such as personal care products, food and beverage and pharmaceutical manufacturing. Equilibar sanitary back pressure regulators can be used for pressure control or automated flow control operations.

The FD Series valves feature Equilibar’s patented dome-loaded multiple orifice technology delivering instantaneous control, frictionless operation, superior precision, and exceptionally wide flow rate range . They offer advantages for sanitary fluid control applications in consumer products and biopharmaceutical production such as gradient chromatography, tangential flow filtration, and liquid dosing.

Download Brochure

FD SANITARY VALVES – PERFORMANCE ADVANTAGES

Traditional back pressure regulators use springs to gradually open up as the overpressure is used to compress the spring. This often results in significant inlet pressure loss with increases in process flow. Equilibar® regulators feature ultra-sensitive diaphragm-operated back pressure technology capable of controlling pressure with high precision over a wide range of flows. They fully open in less than 1% overpressure in most applications.

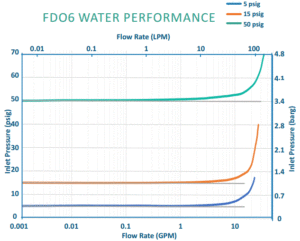

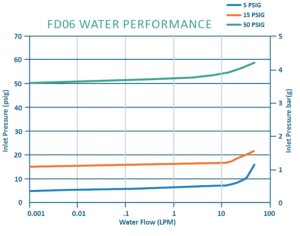

The graph to the right shows an example of the consistent performance of an FDO6 3/4” sanitary FD regulator controlling water pressure across a wide range of flow.

SIMPLE COMPACT DESIGN

With its simple design, FD sanitary regulators are easy to disassemble for maintenance, reassemble, and return to use quickly and easily. The compact design facilitates a simple process layout.

CIP / SIP COMPATIBILITY

The FD Series sanitary valves are made of SS316L stainless steel and contain USP Class VI diaphragms. The design is compatible with temperatures up to 135°C experienced during steam sterilization, and the valve’s wide working flow range allows one FD size to effectively control during high flow CIP rates as well as very low flow dosing rates. The video at the right demonstrates how the FDO8 can keep precise pressure control across a wide range of flow rates from 30 ml/min to 100,000 ml/min. These sanitary valves have undergone comprehensive design and testing to have optimum drainability when oriented with the inlet down.

SMOOTH COMPUTER AUTOMATION

Equilibar FD sanitary back pressure regulators respond instantaneously to changes in flow or setpoint to maintain the desired inlet pressure. Because of its capacity to control within milliseconds, the FD Series is a perfect match for computer automated control. Paired with an electronic pilot regulator, the FD regulator may be connected to the process control system, and it is ready for automation.



Request a Quote Download Brochure

Product Summary

Sanitary Model
Inlet/Outlet
Max Pressure
Cv Range
Body Materials

FDO4

1/2″ 150 psig / 10 bar(g) 1E-7 to 1.0 SS316L; Hastelloy C; custom

FDO6

3/4″ 150 psig / 10 bar(g) 1E-4 to 4.0 SS316L; Hastelloy C; custom

FDO8

1″ 150 psig / 10 bar(g)  1E-4 to 8.0 SS316L; Hastelloy C; custom

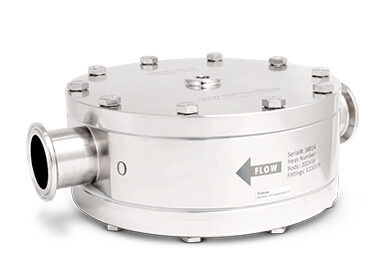

FDO12

1.5″ 150 psig / 10 bar(g)  1E-3 to 12 SS316L; Hastelloy C; custom

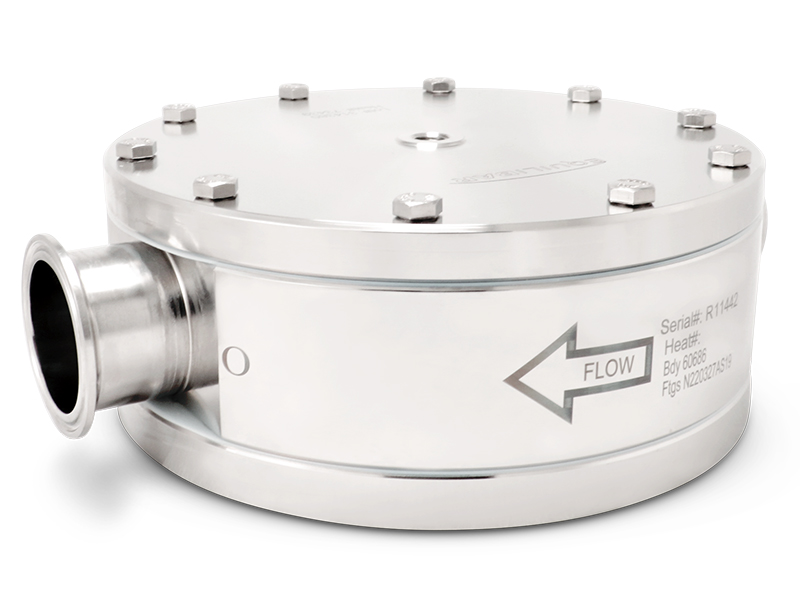

FDO16

2″ 150 psig / 10 bar(g) 1E-3 to 19 SS316L; Hastelloy C; custom

FDO24

3″ 150 psig / 10 bar(g) 1E-3 to 36 SS316L; Hastelloy C; custom

Request a Quote Download Brochure
If you don’t find a suitable regulator here, please visit Steriflow back pressure regulators to learn about the Mark 95 Series.

Application Spotlight – Biopharmaceutical filtration

The Equilibar® dome-loaded back pressure regulator (BPR) offers higher turndown ratio than other valves and can therefore provide precise control across a wide range of flow rates. This makes the Equilibar BPR a superior choice in traditional trans flow or cross flow filtration control.

Schematic of Cross Flow Filtration using Equilibar Sanitary vavles

In the schematic above, an Equilibar FD BPR is used in both the retentate and permeate lines at the exit of the trans flow filtration membrane. A setpoint is established on the dome of the BPR using an electro-pneumatic pilot regulator for computer automation. This allows the filtration system to be controlled using differential pressure (dP) mode – the pressure differential between the feed and retentate streams or by transmembrane pressure (TMP) mode – adjusts the retentate control valve to maintain constant TMP. Read more here.

Contact an application engineer to help select one of our sanitary back pressure regulators for your application.

Learn more about our back pressure regulator  technology and how it works.

Member Login

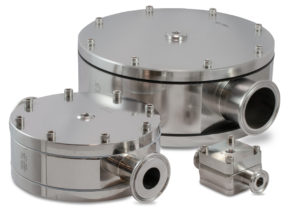

Sanitary pressure and flow control valves from Equilibar

FD Series BPRs come in a variety of sizes for hygienic applications large and small.

Contact Us

visit the single use page

Performance Graph of FDO6 Sanitary Valves Back Pressure Regulator with Water
Performance of FDO6 3/4″ BPR with Water

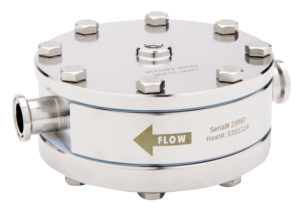

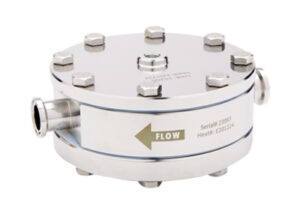

Equilibar FDO6 Sanitary back pressure regulator

FDO6 3/4″ sanitary back pressure regulator


Video showing precise pressure control using an FDO8 valve across a wide flow range

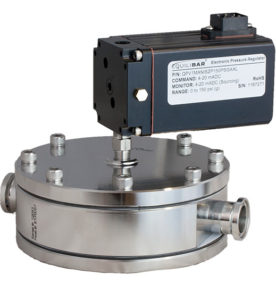

Sanitary valves FDO6 with QPV pilot regulator

Equilibar 3/4″ FDO6 with electronic QPV pilot regulator for automation

Sanitary Back Pressure Regulators

Equilibar® FDO4 has a slightly different body design from other models

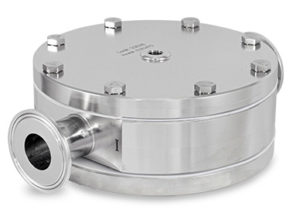

Equlilibar FDO8 Sanitary control valve
