Vacuum Pressure Regulators for Material Handling

  • Equilibar schematic vacuum material handling

Centralized Vacuum Systems Are Common in Material Handling Applications

The Challenges:

A centralized vacuum system for material handling applications consists of one vacuum source, usually located remotely, providing vacuum to multiple points of use. Such a system offers ease of design, installation and maintenance, but presents challenges when each machine requires different levels of vacuum from other machines or when machines are taken off line and the vacuum level rapidly changes. The varying vacuum pressure results in changes in air flow thereby changing the calibration of machines, possibly resulting in mis-feeds of material, and excess component wear. There are also processes where one portion of the machine requires a different vacuum pressure than the rest of the machine, or one part of the operating cycle is at a different pressure. Additionally, some packaging processes depend on extremely consistent vacuum to maintain the quality of the product or its package.

Request a Quote Download Brochure


The Solution:

The installation of an Equilibar vacuum regulator can be the solution to these types of material handling challenges. The Equilibar regulator is a self-contained unit with the control powered by the vacuum system. For installations with a fixed or stable pressure requirement, different from the main system, the manual control can be set and the regulator will hold that level of vacuum regardless of perturbations in the vacuum supply.

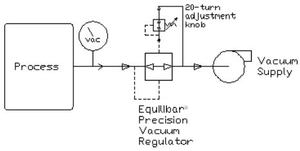

manual vacuum material handling schematic

Request a Quote Download Brochure


Automatic or Remote Control Solution:

For installations where it is desirable to control the vacuum remotely or to vary the vacuum throughout the material handling process, an Equilibar electro-pneumatic set point controller can be employed. This can be controlled by potentiometer or a machine’s process controller, and it can be sensitive to other attributes of production. Equilibar engineers can help specify the components for a specific automated vacuum control system.

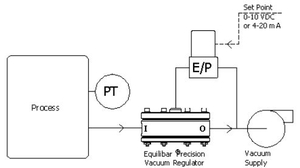

electronic vacuum material handling schematic

Request a Quote Download Brochure


Styles and Availability:

Equilibar vacuum regulators are available in sizes from 1/4 to 3 inch pipe. They can be fabricated from PVC, Carbon steel or 316 Stainless Steel. Sizes 1 inch and above feature the elbow configuration to save space and weight.

Learn more about Equilibar’s vacuum regulators

Request a Quote Download Brochure

Equilibar Vacuum Regulator w/ Manual Set-Point Kit
The Equilibar Vacuum Regulator is shown above with a manual set point kit.
Equilibar Vacuum EVR series Brochure
