Controlling Pressure in an Extrusion

  • Equilibar schematic extrusion

Using a Back Pressure Regulator for Pressure Control in an Extrusion

In many tubing and extrusion applications, maintaining dimensions is critical and difficult. This challenge is critical if the extruded material has little hot strength or is prone to sticking to itself. To increase control, air can be introduced into center space (lumen), but the pressure must be closely controlled and must self adjust to downstream perturbations such as caused by cutoff machines or saws and variations in windup processes.

The installation of an Equilibar® low pressure control system to control the pressure of the air inside the extrudate gives precise control of the dimensions and allows more repeatable process startups.

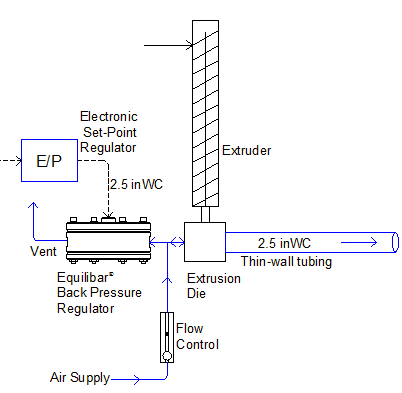

As the schematic below illustrates, a controlled air flow is introduced into the extrusion die from a source such as a rotameter or needle valve. The optimum flow rate is just greater than the maximum flow anticipated by the application. The Equilibar precision back pressure regulator (BPR) controls the die pressure explicitly by venting all excess gas not needed by the extrusion process. The back pressure regulator opens up just enough to maintain tight pressure control at the die. The high flow capacity and lightning fast response of the Equilibar BPR prevents momentary disruptions in pressure that could cause wall thickness variation.

equilibar back pressure regulator extrusion control diagram

The Equilibar back pressure regulator is dome-loaded, meaning that it gets its setpoint signal from a remote air signal. This schematic shows a computer automated process with an electronic pressure regulator supplying the set-point signal to the dome of the Equilibar BPR. However, this pressure can easily be supplied by a manual air pressure regulator such as the Equilibar LPR2.

Request a Quote Download Brochure

Glass Blowing Pressure Control Applications

Industrial glass blowing processes have some of the same challenges as tubing extrusion processes. It is critical to maintain the gas pressure inside the molten glass at the specified value. However, there are several sources of flow disturbances than can easily cause pressure variations. Because of the rapid expansion of gases when they come into contact with very hot surfaces, traditional pressure reducing regulators or mass flow controllers are not able to provide adequate precision pressure control.

The Equilibar back pressure regulator serves as a precision glass blowing pressure control system in a manner very similar to that described above. By sizing the one of the GS Series BPRs generously, it is possible to virtually eliminate the high pressure spike caused by thermal expansion.

Learn more about Equilibar’s back pressure regulator technology .

Learn more about low pressure solutions from Equilibar

See related Extrusion with Vacuum Sizing Box application.

Contact our engineers to discuss your unique application.
