General Service Back Pressure Regulators

GS Series (General Service) Precision Back Pressure Regulators


Equilibar’s GS back pressure valves provide stable pressure control for gases, liquids, and mixed-phases. This product uses rugged 2-piece bar-stock body construction, with sizes from 1/4″ to 1″. Common materials in stock are SS316L and PVC; other available materials are PTFE, PVDF, and carbon steel.

Common applications for the GS Series include fuel cell testing and vacuum applications.

The GS Series comes in two different trims: GR (more efficient for the lower pressures) and NR (more robust for higher pressures).

We invite you to discuss the GS Series and you application requirements with one of our experienced application engineers.


Request PricingTechnical Literature

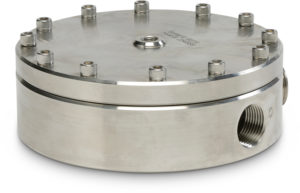

GS Series Back Pressure Regulator

GS-Dimensional-Schematic


Choose Your Back Pressure Regulator

Our Product Selector allows you to search based on your process parameters. TRY IT NOW
Or always feel free to contact an engineer to discuss your needs.

Contact Us

  • If multiple fluids or phases, list all.
  • This field is for validation purposes and should be left unchanged.

GSDH2_general_service_regulator

GSD2 General Service Back Pressure Regulator

Port Sizes:
1/4"
Typical Pressure Ranges:
0 - 1 in WC
0 - 10 in WC
0 - 28 in WC
0 - 5 psi
0 - 10 psi
0 - 20 psi
0 - 30 psi
0 - 60 psi
0 - 100 psi
0 - 150 psi
0 - 200 psi
0 - 250 psi
0 - 300 psi
0 - 400 psi
0 - 500 psi
0 - 750 psi
Key Applications:
  • High Flow Catalysis
  • Pilot Scale Reactors
  • High Viscosity Media
Technical Details

GSDH2_general_service_regulator

GSDM2 General Service Back Pressure Regulator

Port Sizes:
1/4"
Typical Pressure Ranges:
0 - 1000 psi
Key Applications:
  • High Flow Catalysis Research
  • Pilot Scale Reactors
  • Liquid Fuel Recirculation Loops
Technical Details

GSDH2_general_service_regulator

GSDH2 General Service Back Pressure Regulator

Port Sizes:
1/4"
Typical Pressure Ranges:
0 - 1500 psi
0 - 2000 psi
0 - 2500 psi
Key Applications:
  • High Flow Catalysis Research
  • Pilot Scale Reactors
  • High Pressure Liquid Fuels
Technical Details

GSDH3_general_service_regulator

GSD3 General Service Back Pressure Regulator

Port Sizes:
3/8"
Typical Pressure Ranges:
0 - 1 in WC
0 - 10 in WC
0 - 5 psi
0 - 10 psi
0 - 20 psi
0 - 30 psi
0 - 60 psi
0 - 100 psi
0 - 150 psi
0 - 200 psi
0 - 250 psi
0 - 300 psi
0 - 400 psi
0 - 500 psi
Key Applications:
  • Fuel Pump & Systems Testing
  • Fuel Cell Testing
  • Pump recirculation pressure control
Technical Details

GSDH3_general_service_regulator

GSDM3 General Service Back Pressure Regulator

Port Sizes:
3/8"
Typical Pressure Ranges:
0 - 750 psi
0 - 1000 psi
Key Applications:
  • High Flow Catalysis Research
  • Pilot Scale Reactors
  • Liquid Fuel Recirculation Loops
Technical Details

GSDH3_general_service_regulator

GSDH3 General Service Back Pressure Regulator

Port Sizes:
3/8"
Typical Pressure Ranges:
0 - 1500 psi
0 - 2000 psi
0 - 2500 psi
Key Applications:
  • High Flow Catalysis Research
  • Pilot Scale Reactors
  • High Pressure Liquid Fuels
Technical Details

GSD4 General Service Back Pressure Regulator

GSD4 General Service Back Pressure Regulator

Port Sizes:
1/2"
Typical Pressure Ranges:
0 - 1 in WC
0 - 10 in WC
0 - 5 psi
0 - 10 psi
0 - 20 psi
0 - 30 psi
0 - 60 psi
0 - 100 psi
0 - 150 psi
0 - 200 psi
0 - 250 psi
0 - 300 psi
0 - 400 psi
0 - 500 psi
Key Applications:
  • Pump Pressure Control
  • Fuel Cell Testing
  • Extrusion Pressure Control
Technical Details

GSD4 General Service Back Pressure Regulator

GSDH4 General Service Back Pressure Regulator

Port Sizes:
1/2"
Typical Pressure Ranges:
0 - 750 psi
0 - 1000 psi
0 - 1500 psi
Key Applications:
  • High Flow Catalysis Research
  • Pilot Production Reactors
  • High Pressure Liquid Recirculation Loops
Technical Details

GSD8 General Service Back Pressure Regulator

GSD6 General Service Back Pressure Regulator

Port Sizes:
3/4"
Typical Pressure Ranges:
0 - 1 in WC
0 - 10 in WC
0 - 5 psi
0 - 10 psi
0 - 20 psi
0 - 30 psi
0 - 60 psi
0 - 100 psi
0 - 150 psi
0 - 200 psi
0 - 250 psi
0 - 300 psi
0 - 400 psi
Key Applications:
Technical Details

GSD8 General Service Back Pressure Regulator

GSDM6 General Service Back Pressure Regulator

Port Sizes:
3/4"
Typical Pressure Ranges:
0 - 500 psi
0 - 750 psi
Key Applications:
  • Precision Dosing Pressure Control
  • Pump Recirculation Loops
  • High Viscosity Media
Technical Details

GSD8 General Service Back Pressure Regulator

GSDH6 General Service Back Pressure Regulator

Port Sizes:
3/4"
Typical Pressure Ranges:
0 - 1000 psi
0 - 1500 psi
0 - 2000 psi
0 - 2500 psi
0 - 3000 psi
Key Applications:
  • Precision Dosing Pressure Control
  • Pump Recirculation Loops
  • High Viscosity Media
Technical Details

GSD6 General Service Back Pressure Regulator

GSD8 General Service Back Pressure Regulator

Port Sizes:
1"
Typical Pressure Ranges:
0 - 1 in WC
0 - 10 in WC
0 - 28 in WC
0 - 5 psi
0 - 10 psi
0 - 20 psi
0 - 30 psi
0 - 60 psi
0 - 100 psi
0 - 150 psi
0 - 175 psi
0 - 200 psi
0 - 250 psi
Key Applications:
Technical Details

GSD6 General Service Back Pressure Regulator

GSDM8 General Service Back Pressure Regulator

Port Sizes:
1"
Typical Pressure Ranges:
0 - 300 psi
0 - 400 psi
0 - 500 psi
0 - 750 psi
Key Applications:
  • Precision Dosing Pressure Control
  • Pump Recirculation Loops
  • High Viscosity Media
Technical Details

GSD6 General Service Back Pressure Regulator

GSDH8 General Service Back Pressure Regulator

Port Sizes:
1"
Typical Pressure Ranges:
0 - 7 in WC
0 - 1000 psi
0 - 1500 psi
0 - 2000 psi
0 - 2500 psi
Key Applications:
  • Precision Dosing Pressure Control
  • Pump Recirculation Loops
  • High Viscosity Media
Technical Details


Other Equilibar Back Pressure Products:

research series back pressure regulator Research Series Back Pressure Regulators 1/16" to 1/4"
up to 10,000 psig / 690 bar(g)
general service back pressure regulator GS series General Service Back Pressure Regulators 1/4" to 1"
up to 2500 psig / 172 bar(g)
industrial service back pressure valve BD seriesIndustrial Service Back Pressure Valves 1.5" to 6"
up to 1000 psig / 69 bar(g)

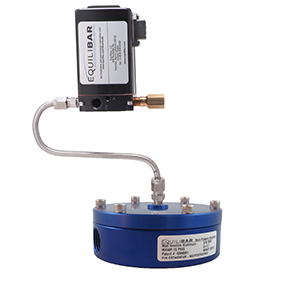

image of GS back pressure regulator with QPV pilot regulatorElectronic Back Pressure Regulators 1/4" to 4"
