GSD3 General Service Back Pressure Regulator

Port Sizes:
3/8"
Max Pressure (Std Body Mat’l)
400 psig / 28 bar(g)
Body Material (Standard):
Stainless Steel 316/316L
Body Material (Optional):
Hastelloy C276, Monel, Anodized Aluminum, PVC, PVDF, PEEK, PTFE and other custom materials
Max CV:
1.8
Key Applications:
Product Description

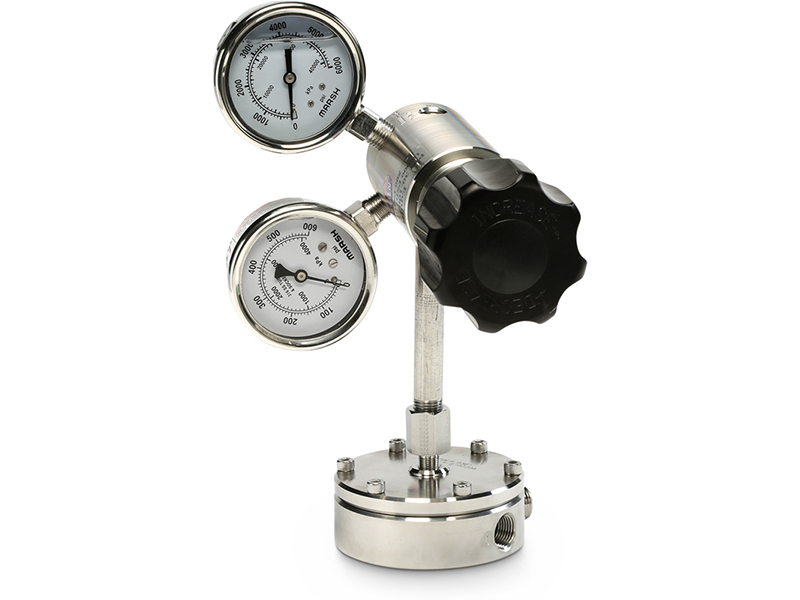

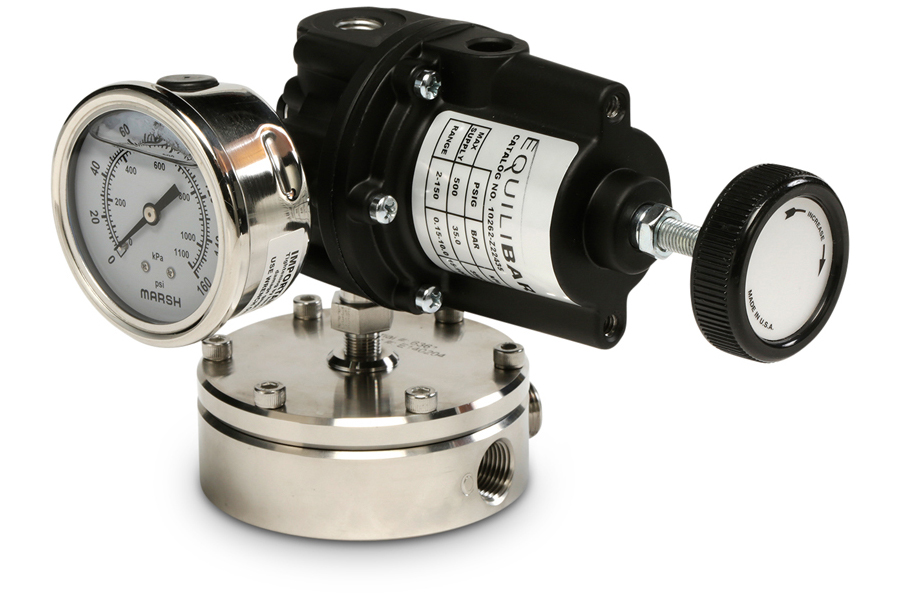

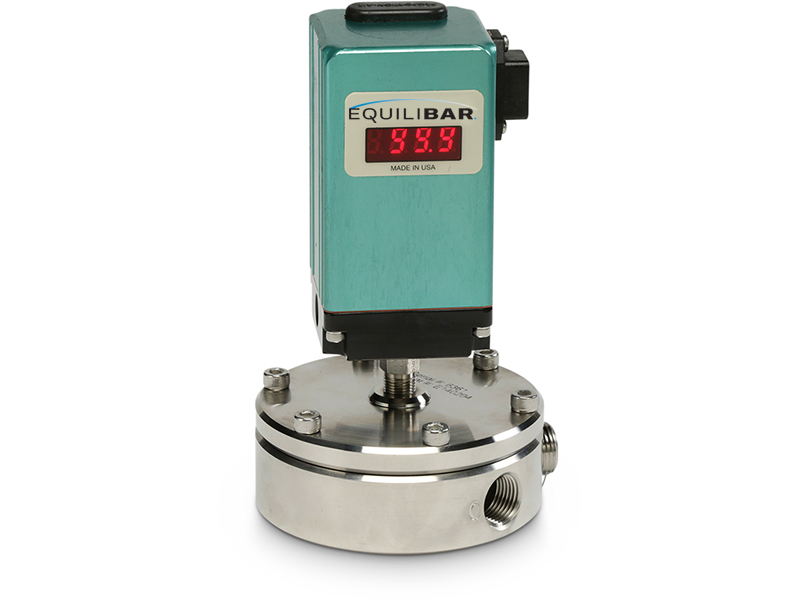

Equilibar GSD3 stainless steel pressure regulator

GSD3 General Service Back Pressure Regulator

The GSD3 back pressure regulators is useful for larger research applications and has high enough capacity to control fluid systems in small industrial or pilot plant facilities. One popular application automotive fuel pump testing systems, where the 3/8″ ports are ideally sized for rapid control of gasoline or diesel fuel pressure.

GS Series Back Pressure Regulators

The GS Series back pressure regulators are used for gas, liquid or mixed phase fluid control and are ideally sized for pilot plant or manufacturing scale applications. They range in port size from 1/4″ to 1″.

Back pressure regulators control their inlet pressure to regulate the upstream process by opening up only as much as necessary to hold back the desired pressure at the inlet.

The GS series design uses Equilibar’s unique patented multiple orifice, direct sealing diaphragm technology to control back pressure with great accuracy even where high temperatures, aggressive chemicals, mixed phase media, or other demanding conditions exist.

Equilibar GS Series units are 1:1 dome-loaded, meaning that a gas or air “pilot” pressure must be supplied to the dome of the BPR equal to the desired inlet setpoint. This pilot pressure can be supplied by a manual pressure regulator or by an electronic pressure regulator for computer automation.

Contact an application engineer for help finding the right back pressure regulator for your process.

Videos
Equilibar GSD3 stainless steel pressure regulator

GSD3 General Service Back Pressure Regulator

Control the Flow of a Pump With a Back Pressure Regulator

 How Equilibar Back Pressure Regulator Works

Downloads
Applications
Equilibar GSD3 stainless steel pressure regulator

GSD3 General Service Back Pressure Regulator

Additional Specs
Equilibar GSD3 stainless steel pressure regulator

GSD3 General Service Back Pressure Regulator

Weight:

3.01 lbs (1.37 kg)(SS); 0.9 lbs (0.41 kg)(PVC); 1.1 lbs (0.50 kg)(AA)

Dimensions:

Dimensional Sketch of GS Series Back Pressure RegulatorMetal Models
DIM A – 3.50 in (89 mm)
DIM B – 1.40 in (36 mm)
Polymer Models
DIM A – 3.75 in (95 mm)
DIM B – 1.70 in (43 mm)
PTFE Models
DIM A – 3.75 in (95 mm)
DIM B – 1.80 in (46 mm)





Fitting/Threads:

Standard: 1/8″ NPT Standard
Optional: 1/8″ BSPP; Swagelok VCO®; Swagelok VCRV®; SAE; Tube Stub; custom

How It Works
Equilibar GSD3 stainless steel pressure regulator

GSD3 General Service Back Pressure Regulator
