GSDH3 General Service Back Pressure Regulator

Port Sizes:
3/8"
Typical Pressure Ranges:
0 - 1500 psi0 - 2000 psi0 - 2500 psi
Body Material (Standard):
Stainless Steel 316/316L
Body Material (Optional):
Hastelloy C276, Custom
Max CV:
1.8
Key Applications:

Contact Us

  • If multiple fluids or phases, list all.
  • This field is for validation purposes and should be left unchanged.
Product Description
GSDH3_general_service_regulator

GSDH3 General Service Back Pressure Regulator

The GSDH3 is the highest pressure GS model back pressure regulator in the 3/8 inch port size. The GSDH3 was originally designed for controlling high pressure liquid fuels in automative fuel rail testing. The GSDH3 is also used for higher pressure catalytic reactor vessel pressure control in mid sized pilot plant operations. The GSDH3 is the highest pressure GS model back pressure regulator in the 3/8 inch port size. The GSDH3 was originally designed for controlling high pressure liquid fuels in automative fuel rail testing. The GSDH3 is also used for higher pressure catalytic reactor vessel pressure control in mid sized pilot plant operations.

GS Series

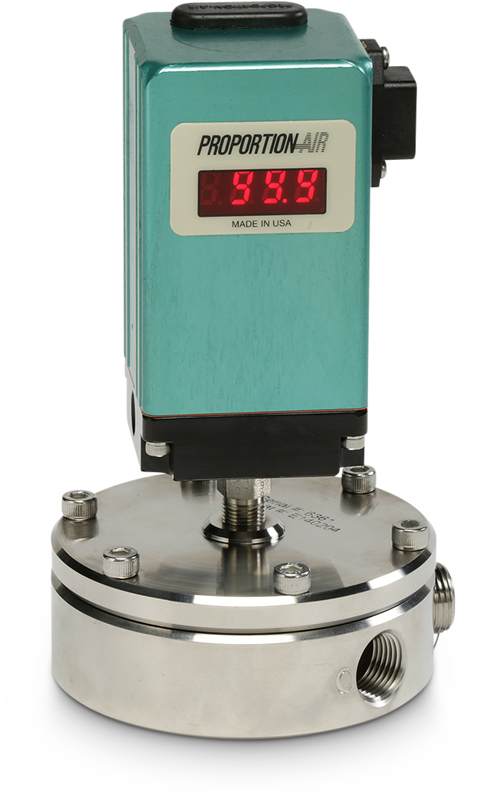

The GS ‘General Services’ is a family of back pressure regulators useful for gas, liquid, or mixed gas & liquid service. The GS design uses multiple parallel internal orifice with direct diaphragm sealing technology to control back pressure with great accuracy where high temperatures, aggressive chemicals, mixed gas/liquid phase media, or other demanding conditions exist. The GS series is a dome loaded pilot operated design. Pilot pressure may be provided by a remote manually adjusted set point regulator or with an electronic pressure regulator to allow automated or closed loop control of your back pressure. The GS series is ideally sized where accurate control is needed in pilot plant or manufacturing scale applications.

Not sure which back pressure regulator is right for your application?
Perhaps you are not able to find what you are after?
Contact one of our application engineers here: https://www.equilibar.com/contact/

Videos
GSDH3_general_service_regulator

GSDH3 General Service Back Pressure Regulator

Two Phase Flow Pressure Regulator

How Equilibar Back Pressure Regulator Works

Downloads
Applications
GSDH3_general_service_regulator

GSDH3 General Service Back Pressure Regulator

Additional Specs
GSDH3_general_service_regulator

GSDH3 General Service Back Pressure Regulator

Weight:

Coming Soon

Dimensions:

Dimensional Sketch of GS Series Back Pressure Regulator



Dim A: 3.85 in (98 mm)
Dim B: 1.78 in (45 mm)





Fitting/Threads:

Standard: NPT
Optional: BSPP; Swagelok VCO®; Swagelok VCR®; SAE; Tube Stub; custom

How It Works
GSDH3_general_service_regulator

GSDH3 General Service Back Pressure Regulator
