GSDM3 General Service Back Pressure Regulator

Port Sizes:
3/8"
Max Pressure (Std Body Mat’l)
800 psig / 55 bar(g)
Body Material (Standard):
Stainless Steel 316/316L
Body Material (Optional):
Hastelloy C276, Custom
Max CV:
1.8
Key Applications:
Product Description
GSDH3_general_service_regulator

GSDM3 General Service Back Pressure Regulator

The 3/8″ GSDM3 back pressure regulator is intended for services with higher pressures than the GSD3. The GSDM3 can be rated for operating pressures up to 800 psig / 55 bar(g). PEEK, PTFE/Glass, or Metal Diaphragms are commonly used for applications in this pressure range.

GS Series

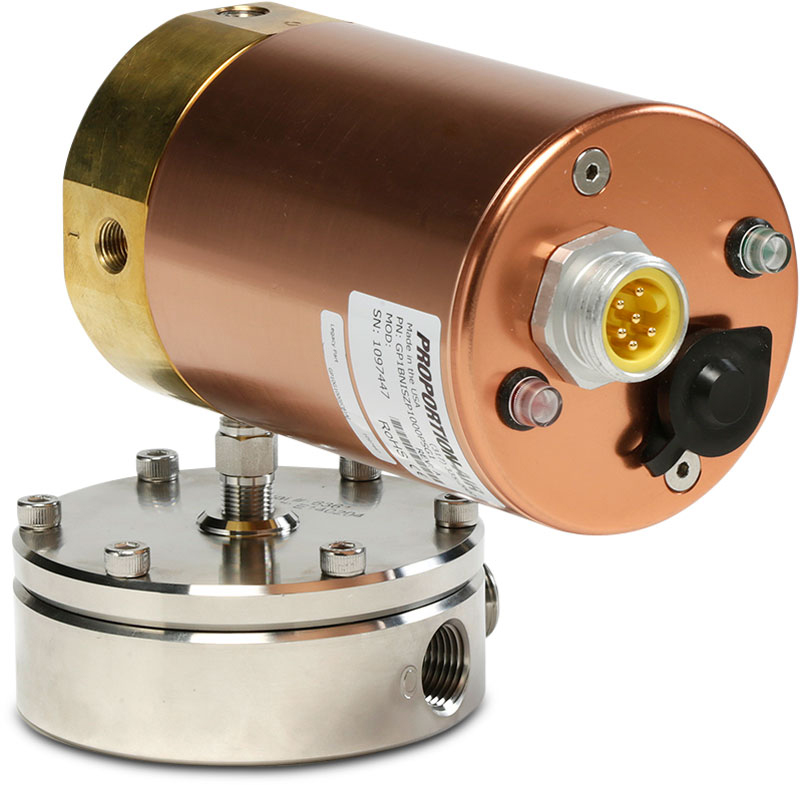

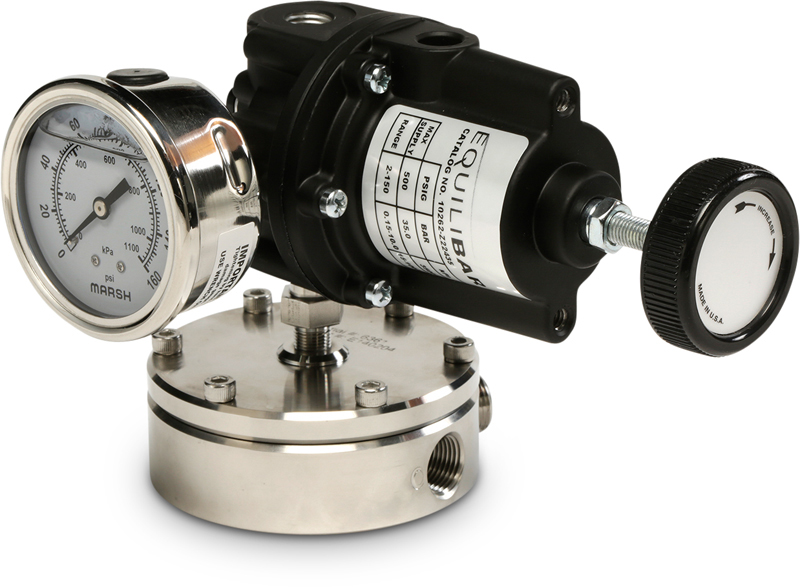

The GS ‘General Services’ is a family of back pressure regulators useful for gas, liquid, or mixed gas & liquid service. The GS design uses multiple parallel internal orifice with direct diaphragm sealing technology to control back pressure with great accuracy where high temperatures, aggressive chemicals, mixed gas/liquid phase media, or other demanding conditions exist. The GS series is a dome-loaded pilot operated design. Pilot pressure may be provided by a remote manually adjusted set point regulator or with an electronic pressure regulator to allow automated or closed loop control of the back pressure. The GS series is the ideal size for accurate control in pilot plant or manufacturing scale applications.

Contact an application engineer for help finding the right back pressure regulator for your process

Videos
GSDH3_general_service_regulator

GSDM3 General Service Back Pressure Regulator

Two Phase Flow Pressure Regulator

Control the Flow of a Pump With a Back Pressure Regulator

 How Equilibar Back Pressure Regulator Works

Downloads
Applications
GSDH3_general_service_regulator

GSDM3 General Service Back Pressure Regulator

Additional Specs
GSDH3_general_service_regulator

GSDM3 General Service Back Pressure Regulator

Weight:

4 Lbs / 1.8 Kg

Dimensions:

Dimensional Sketch of GS Series Back Pressure Regulator



Dim A: 3.75 in (95 mm)
Dim B: 1.54 in (39 mm)





Fitting/Threads:

Standard: NPT
Optional: BSPP; Swagelok VCO®; Swagelok VCRV®; SAE; Tube Stub

How It Works
GSDH3_general_service_regulator

GSDM3 General Service Back Pressure Regulator
