GSDH2 General Service Back Pressure Regulator

Port Sizes:
1/4"
Typical Pressure Ranges:
0 - 1500 psi0 - 2000 psi0 - 2500 psi
Body Material (Standard):
Stainless Steel 316/316
Body Material (Optional):
Hastelloy C276, Titanium
Max CV:
1.2
Key Applications:

Contact Us

  • If multiple fluids or phases, list all.
  • This field is for validation purposes and should be left unchanged.
Product Description

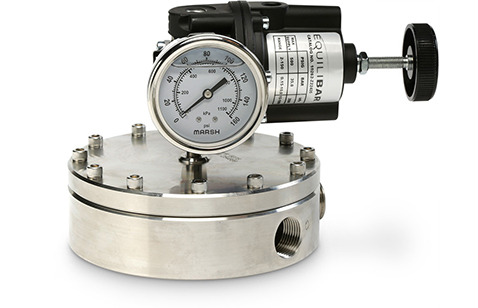

GSDH2 general service back pressure regulator

GSDH2 General Service Back Pressure Regulator

The GSDH2 is a highest pressure variant of the 1/4 port size GS2 models. The GSDH2 picks up where the lower flow research series leaves off making it useful in higher flow research applications and small scale pilot plant reactor pressure control. The GSDH2 back pressure regulator is available with PTFE, stainless steel, and other diaphragms as required by the chemical. The GSDH2 is a highest pressure variant of the 1/4 port size GS2 models. The GSDH2 picks up where the lower flow research series leaves off making it useful in higher flow research applications and small scale pilot plant reactor pressure control. The GSDH2 back pressure regulator is available with PTFE, stainless steel, and other diaphragms as required by the chemical media.

GS Series
The GS ‘General Services’ is a family of back pressure regulators useful for gas, liquid, or mixed gas & liquid service. The GS design uses multiple parallel internal orifice with direct diaphragm sealing technology to control back pressure with great accuracy where high temperatures, aggressive chemicals, mixed gas/liquid phase media, or other demanding conditions exist. The GS series is a dome loaded pilot operated design. Pilot pressure may be provided by a remote manually adjusted set point regulator or with an electronic pressure regulator to allow automated or closed loop control of your back pressure. The GS series is ideally sized where accurate control is needed in pilot plant or manufacturing scale applications.

Not sure which back pressure regulator is right for your application?
Perhaps you are not able to find what you are after?
Contact one of our application engineers here: https://www.equilibar.com/contact/

Videos
GSDH2 general service back pressure regulator

GSDH2 General Service Back Pressure Regulator

Two Phase Flow Pressure Regulator

How Equilibar Back Pressure Regulator Works

Downloads
Applications
GSDH2 general service back pressure regulator

GSDH2 General Service Back Pressure Regulator

Additional Specs
GSDH2 general service back pressure regulator

GSDH2 General Service Back Pressure Regulator

Weight:

1 lb (0.45 kg)

Dimensions:

Dimensional Sketch of GS Series Back Pressure Regulator



Dim A: 3.3 in (84 mm)
Dim B: 1.6 in (41 mm)





Fitting/Threads:

Standard: NPT
Optional: BSPP; Swagelok VCO®; Swagelok VCRV®; SAE; Tube Stub

How It Works
GSDH2 general service back pressure regulator

GSDH2 General Service Back Pressure Regulator
