GSD8 General Service Back Pressure Regulator

Port Sizes:
1"
Typical Pressure Ranges:
0 - 1 in WC0 - 10 in WC0 - 28 in WC0 - 5 psi
0 - 10 psi0 - 20 psi0 - 30 psi0 - 60 psi
0 - 100 psi0 - 150 psi0 - 175 psi0 - 200 psi
0 - 250 psi
Body Material (Standard):
Stainless Steel 316/316L
Body Material (Optional):
Hastelloy C276, Anodized Aluminum, PVC, Custom
Max CV:
8.5
Key Applications:

Contact Us

  • If multiple fluids or phases, list all.
  • This field is for validation purposes and should be left unchanged.
Product Description
GSD6 General Service Back Pressure Regulator

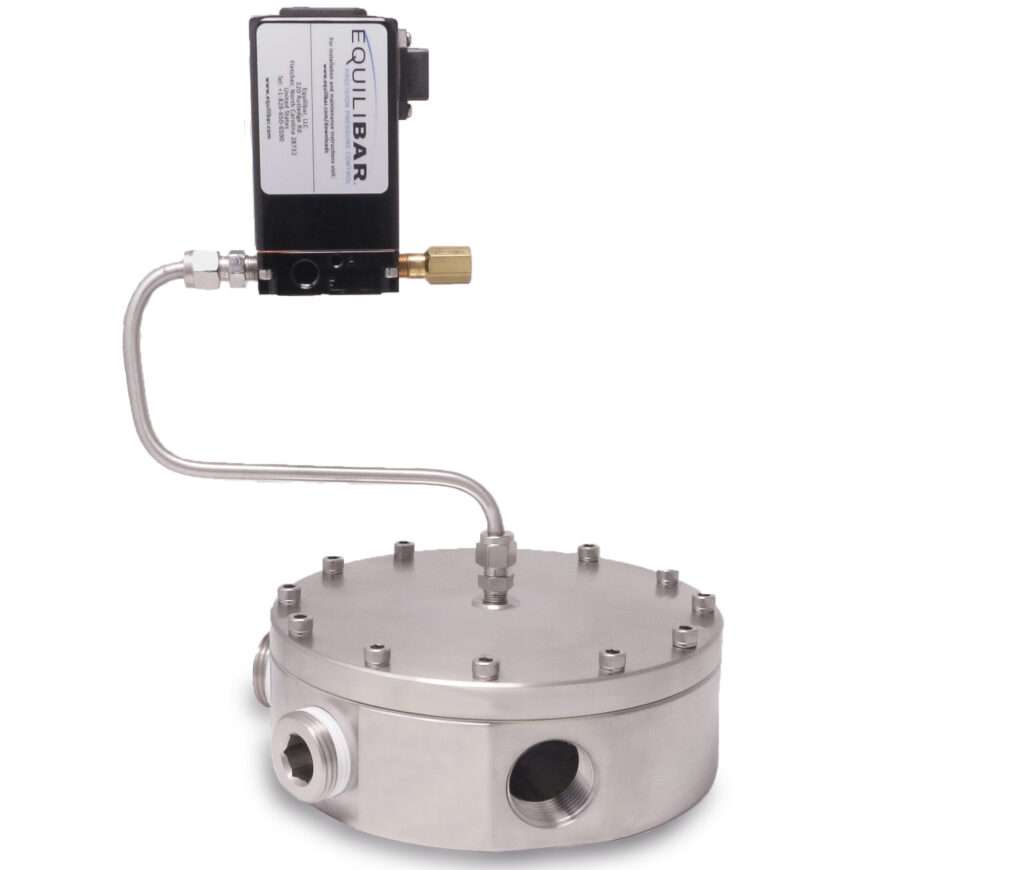

GSD8 General Service Back Pressure Regulator

The GSD8 is the largest of the GS Series, and is available with standard female 1″ NPT ports. Custom connections include BSPP or flanges. Available in pressures up to 15 Bar, the GSD8 is also extremely useful in low pressure applications such as tank blanketing or tank padding. The GSD8 may also be used to control the back pressure of low pressure inert gasses used to shield a welding process.

GS Series

The GS General Service is a family of back pressure regulators useful for gas, liquid, or mixed gas & liquid service. The General Service design uses Equilibar’s unique multiple orifice, direct diaphragm sealing technology to control back pressure with great accuracy where high temperatures, aggressive chemicals, mixed gas/liquid phase media, or other demanding conditions exist. The GS series is a dome loaded pilot operated design. Pilot pressure may be provided by a remote manually adjusted set point regulator or with an electronic pressure regulator to allow automated or closed loop control of your back pressure. The GS series is ideally sized where accurate control is needed in pilot plant or manufacturing scale applications.

Contact an application engineer for help finding the right back pressure regulator for your process.

Videos
GSD6 General Service Back Pressure Regulator

GSD8 General Service Back Pressure Regulator

Control the Flow of a Pump With a Back Pressure Regulator

How Equilibar Back Pressure Regulator Works

Downloads
Applications
Additional Specs
GSD6 General Service Back Pressure Regulator

GSD8 General Service Back Pressure Regulator

Weight:

21.2 lbs (9.62 kg)(SS); 4.9 lbs (2.23 kg)(PVC)

Dimensions:

Dimensional Sketch of GS Series Back Pressure RegulatorMetallic Models
DIM A – 7.00 in (178 mm)
DIM B – 2.50 in (64 mm)
Polymer Models
DIM A – 7.25 in (184 mm)
DIM B – 2.93 in (74 mm)
PTFE Models
DIM A – 7.25 in (184 mm)
DIM B – 3.33 in (85 mm)

Fitting/Threads:

Standard: NPT
Optional: BSPP; Swagelok VCO®; Swagelok VCR®; 150# Flange; 300# Flange; SAE; Tube Stub; custom

How It Works
GSD6 General Service Back Pressure Regulator

GSD8 General Service Back Pressure Regulator
