GSDM6 General Service Back Pressure Regulator

Port Sizes:
3/4"
Max Pressure (Std Body Mat’l)
700 psig / 55 bar(g)
Body Material (Standard):
Stainless Steel 316/316L
Body Material (Optional):
Hastelloy C276, Custom
Max CV:
5.5
Key Applications:
Product Description
GSD8 General Service Back Pressure Regulator

GSDM6 General Service Back Pressure Regulator

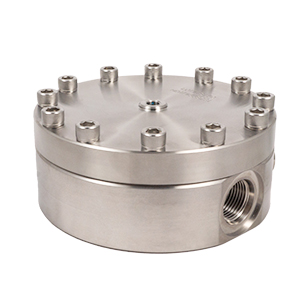

The 3/4″ GSDM6 back pressure regulator is intended for pressures between 400 and 800 psig / 27-55 bar(g). Female NPT ports are standard, and BSPP, SAE, or welded flanged connections are available upon request.

GS Series

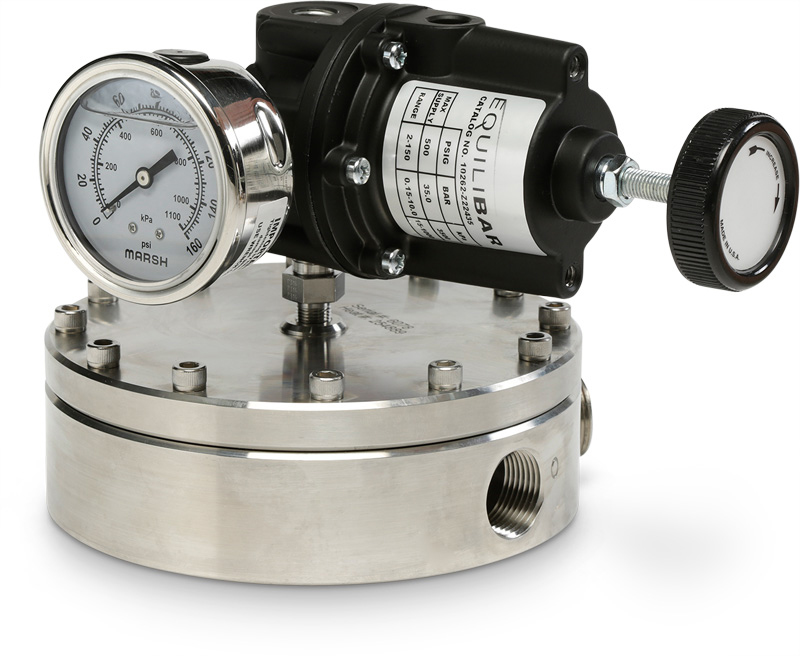

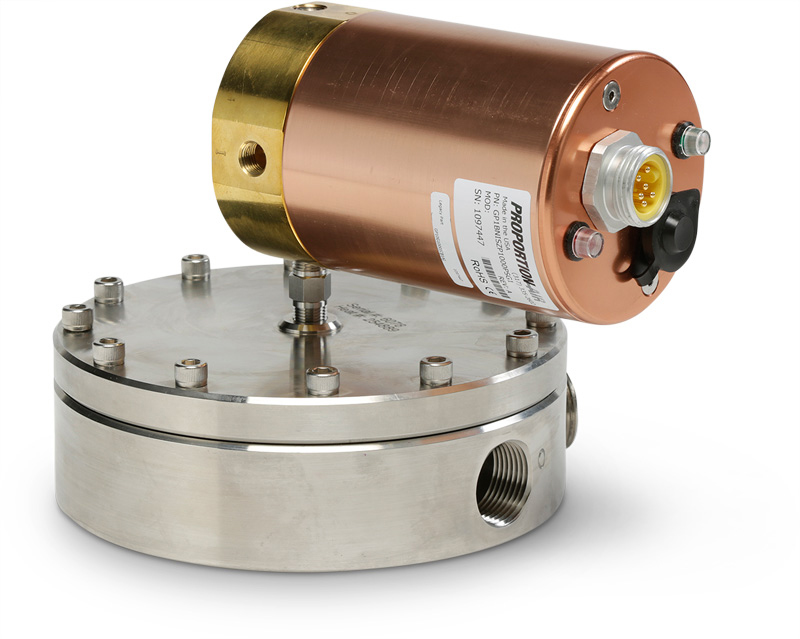

The GS General Service is a family of back pressure regulators useful for gas, liquid, or mixed gas & liquid service. The General Service design uses Equilibar’s unique multiple orifice, direct diaphragm sealing technology to control back pressure with great accuracy where high temperatures, aggressive chemicals, mixed gas/liquid phase media, or other demanding conditions exist. The GS series is a dome loaded pilot operated design. Pilot pressure may be provided by a remote manually adjusted set point regulator or with an electronic pressure regulator to allow automated or closed loop control of your back pressure. The GS series is ideally sized where accurate control is needed in pilot plant or manufacturing scale applications.

Contact an application engineer for help finding the right back pressure regulator for your process.

Videos
GSD8 General Service Back Pressure Regulator

GSDM6 General Service Back Pressure Regulator

Two Phase Flow Pressure Regulator

Control the Flow of a Pump With a Back Pressure Regulator

How Equilibar Back Pressure Regulator Works

Downloads
Applications
GSD8 General Service Back Pressure Regulator

GSDM6 General Service Back Pressure Regulator

Additional Specs
GSD8 General Service Back Pressure Regulator

GSDM6 General Service Back Pressure Regulator

Weight:

Coming Soon

Dimensions:

Dimensional Sketch of GS Series Back Pressure Regulator



Dim A: 6.25 in (159 mm)
Dim B: 2.44 in (62 mm)





Fitting/Threads:

Standard: NPT
Optional: BSPP; Swagelok VCO®; Swagelok VCR®; 150# Flange; 300# Flange; SAE; Tube Stub; custom

How It Works
GSD8 General Service Back Pressure Regulator

GSDM6 General Service Back Pressure Regulator
