FDO16 Sanitary Back Pressure Regulator

Port Sizes:
2"
Max Pressure (Std Body Mat’l)
150 psig / 10 bar(g)
Body Material (Standard):
Stainless Steel 316/316L
Body Material (Optional):
Hastelloy C276, Custom
Max CV:
19
Key Applications:
Product Description
FDO16 Sanitary Back Pressure Regulator

FDO16 Sanitary Back Pressure Regulator

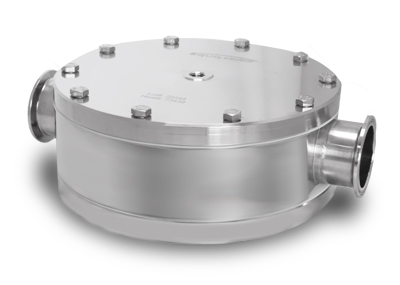

The FDO16 is a 2″ high-flow sanitary back pressure regulator with the ability to quickly control system pressure in liquid or gas systems. The 2″ size is conveniently sized for Clean-in-Place systems or as a means of controlling large streams in BioPharma or hygienic industrial blending systems.

FD Series Sanitary Valves

The FD Series are sanitary back pressure regulators specifically designed for use in biopharma, food, and other applications where there are surface finish, clean-in-place, drainability, or USP class VI material requirements. They can also be set up in for closed loop flow control applications.

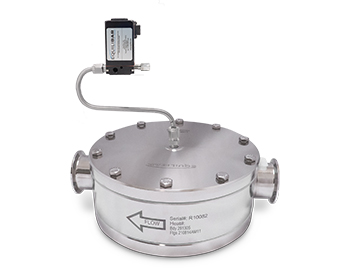

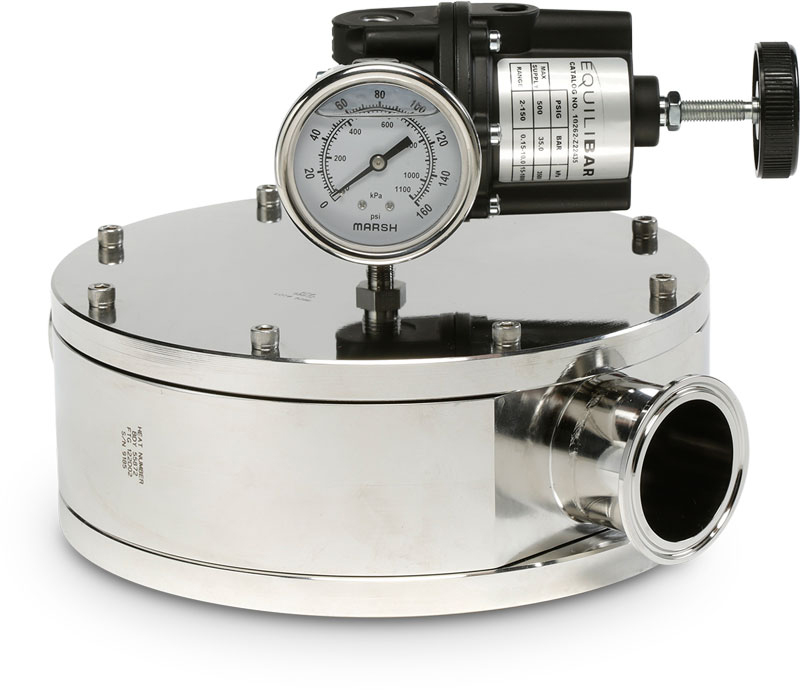

Like our other Equilibar® back pressure regulators, the FD Series features ultra sensitive diaphragm-operated back pressure technology capable of controlling pressure with high precision over a wide range of flows. The pilot-controlled, dome loaded design will control the system pressure in a precise 1 to 1 relationship with the pressure applied to the dome. This dome pilot pressure may be provided by a manually adjustable spring loaded regulator or by an electronic pressure regulator for accurate computer control.

The flexible membrane diaphragm is the only moving part. This membrane instantly responds to changes in the system flow rate to accurately maintain the pressure at the desired setpoint. The FD series is the most accurate and highest resolution sanitary back pressure regulator on the market. The simple design allows for extremely fast disassembly and field repair using low cost rebuild kits. It’s compact form facilitates a simple process layout.

Contact an application engineer to determine if the FD Series regulator is suited for your specific requirements.

Videos
FDO16 Sanitary Back Pressure Regulator

FDO16 Sanitary Back Pressure Regulator

How Equilibar Back Pressure Regulator Works

Downloads
FDO16 Sanitary Back Pressure Regulator

FDO16 Sanitary Back Pressure Regulator

Applications
FDO16 Sanitary Back Pressure Regulator

FDO16 Sanitary Back Pressure Regulator

Additional Specs
FDO16 Sanitary Back Pressure Regulator

FDO16 Sanitary Back Pressure Regulator

Weight:

Coming Soon

Dimensions:

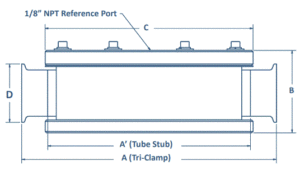

dimensional sketch of Equilibar FD Sanitary pressure regulator



Dim A: 11.1 in (280 mm)
Dim A’: 8.8 in (223 mm)
Dim B: 3.7 in (94 mm)



Fitting/Threads:

Tri-Clamp; Tube Stub

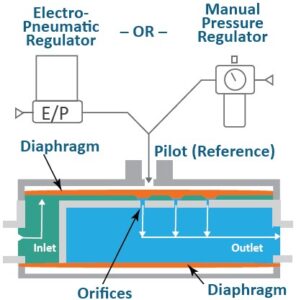

How It Works
FDO16 Sanitary Back Pressure Regulator

FDO16 Sanitary Back Pressure Regulator
