|Max Pressure (Std Body Mat’l)||
|Body Material (Standard):||
|Body Material (Optional):||

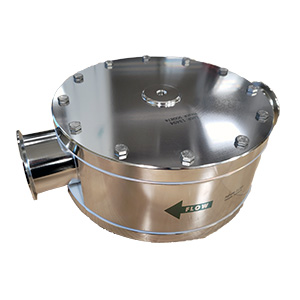

The Equilibar® FDO24 is a 3″ sanitary back pressure regulator for controlling liquids or gas. The 3″ valve is sized for higher flow systems such as Clean-in-Place (CIP), water-for-injection (WFI), and large volume product streams in BioPharma or hygienic industrial processes.
FD Series Sanitary Valves
The FD Series are sanitary back pressure regulators specifically designed for use in biopharma, food, and other applications where there are surface finish, clean-in-place, drainability, or USP class VI material requirements. They can also be set up for closed loop flow control applications.
Like our other Equilibar back pressure regulators, the FD Series valves feature ultra sensitive diaphragm-operated back pressure technology capable of controlling pressure with high precision over a wide range of flows. The pilot-controlled, dome loaded design controls system pressure in a precise 1 to 1 relationship with the pressure applied to the dome. This dome pilot pressure may be provided by a manually adjustable spring loaded regulator or by an electron-pneumatic pressure regulator for accurate computer control.
The flexible membrane diaphragm is the only moving part and it responds instantly to changes in the system flow rate to accurately maintain the pressure at the desired setpoint. The FD series is the most accurate and highest resolution sanitary back pressure regulator on the market. The simple design allows for extremely fast disassembly and field repair using low cost rebuild kits. It’s compact form facilitates a simple process layout.
Contact an application engineer to determine if the FD Series pressure regulator of flow control valve is suited for your specific application.
How Equilibar Back Pressure Regulator Works
Dim A: 14.8 in (375 mm)
Dim A’: 10.8 in (274 mm)
Dim B: 5.1 in (129 mm)
Tri-Clamp; Tube Stub
