FDO4 Sanitary Back Pressure Regulator

Port Sizes:
1/2"
Max Pressure (Std Body Mat’l)
150 psig / 10 bar(g)
Body Material (Standard):
Stainless Steel 316/316L
Body Material (Optional):
Hastelloy C276, Custom
Max CV:
1
Key Applications:
Product Description
FDO4 Sanitary Back Pressure Regulator

FDO4 Sanitary Back Pressure Regulator

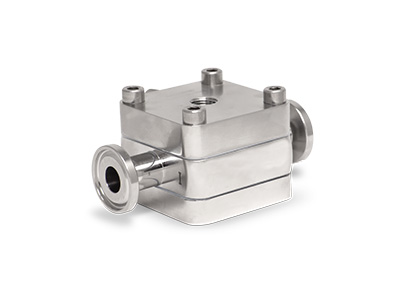

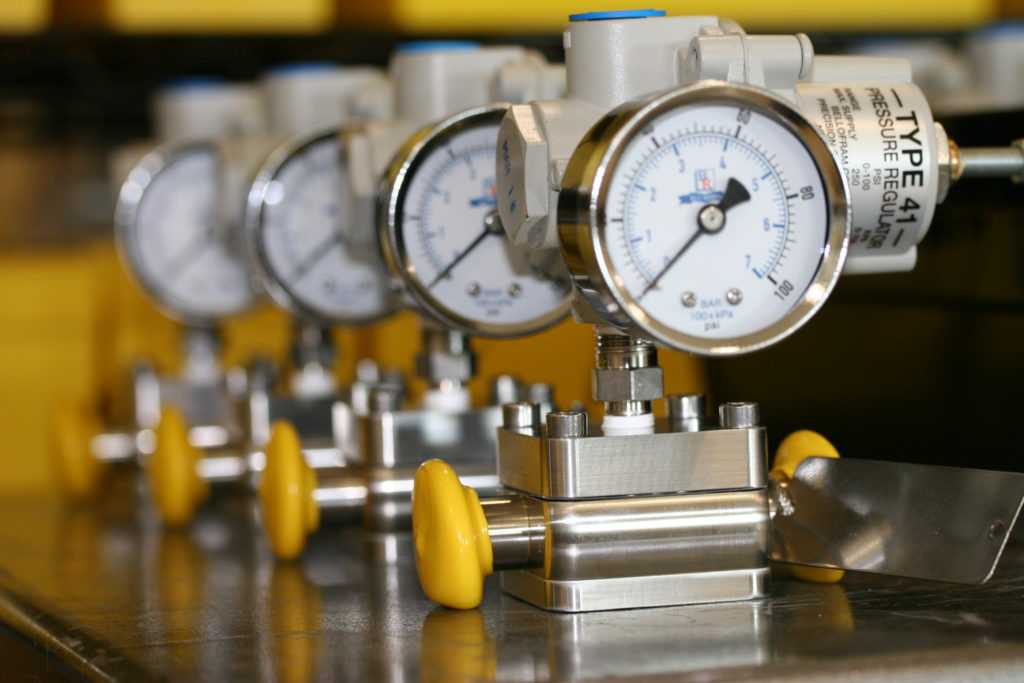

The FDO4 is a lower-flow back pressure regulator with 1/2″ sanitary clamp connections. It is ideally sized for liquid blending applications of chemical additives in the range of 1 ml/minute to about 3000 ml/minute.

The FD Series back pressure regulator family is specifically designed as a sanitary regulator for use in biopharma, food, and other applications where there are surface finish, clean-in-place, drainability, or USP class VI material requirements.

Like our other Equilibar® back pressure regulators, the FD Series features ultra sensitive diaphragm-operated back pressure technology capable of controlling pressure with high precision over a wide range of flows. The pilot-controlled, dome loaded design will control the system pressure in a precise 1 to 1 relationship with the pressure applied to the dome. This dome pilot pressure may be provided by a manually adjustable spring loaded regulator or by an electronic pressure regulator for computer control.

The flexible membrane diaphragm is the only moving part. This membrane instantly responds to changes in the system flow rate to accurately maintain the pressure at the desired set point. The FD series is the most accurate and highest resolution sanitary back pressure regulator on the market. The simple design allows for extremely fast disassembly and field repair using low cost rebuild kits. The compact design facilitates a simple process layout.

Contact an application engineer to determine if the FD Series regulator is suited for your specific requirements.

Videos
FDO4 Sanitary Back Pressure Regulator

FDO4 Sanitary Back Pressure Regulator

How Equilibar Back Pressure Regulator Works

Downloads
FDO4 Sanitary Back Pressure Regulator

FDO4 Sanitary Back Pressure Regulator

Product Information & Specifications

For FDO4 models with FDO4HNx5 and lower PN FDO4 Rev5- I & M
For FDO4 models with FDO4HNx6 part numbersFDO4 Rev6 I & M

3D Model (.stp file)
Applications
FDO4 Sanitary Back Pressure Regulator

FDO4 Sanitary Back Pressure Regulator

Additional Specs
FDO4 Sanitary Back Pressure Regulator

FDO4 Sanitary Back Pressure Regulator

Weight:

1.3 lbs (.58 kg)

Dimensions:

dimensional sketch of Equilibar FD Sanitary pressure regulator



Dim A: 3.4 in (86 mm)
Dim A’: N/A
Dim B1: 1.2 in (31 mm), 1.4 in (36 mm), 1.5 in (38 mm)



1Dim B for FDO4 is dependent on ID option ordered.

Fitting/Threads:

Tri-Clamp; Tube Stub

How It Works
