EVR-BD24 Vacuum Regulator

Port Sizes:
3"
Typical Pressure Ranges:
Body Material (Standard):
Anodized Aluminum
Body Material (Optional):
Stainless Steel 316/316L, PVC, Custom Materials
Max CV:
60
Key Applications:

Vacuum Control for High Speed Canning

Vacuum Pressure Regulators Used for Material Handling

Vacuum Holding and Vacuum Table Control

Contact Us

  • If multiple fluids or phases, list all.
  • This field is for validation purposes and should be left unchanged.
Product Description
BD12 vacuum

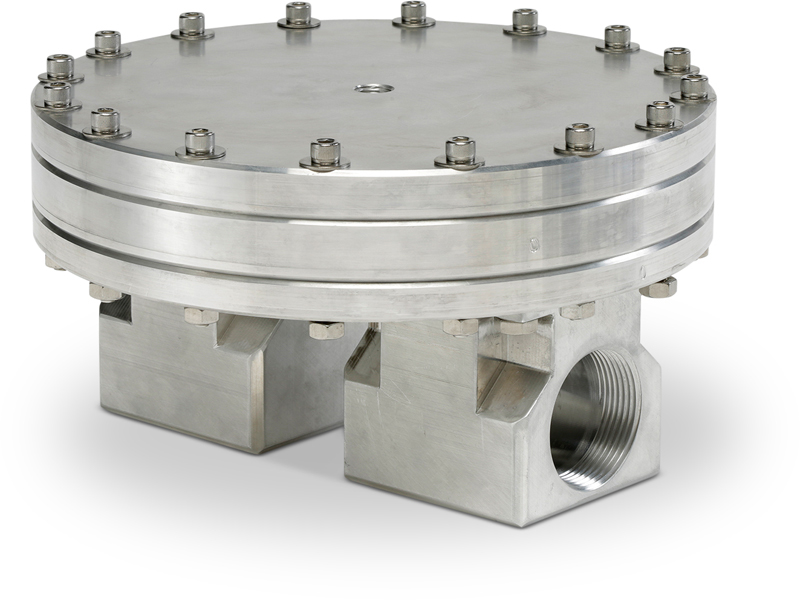

EVR-BD24 Vacuum Regulator

The EVR-BD24 has 3″ ports and is used for larger industrial applications with Cv range between 6E-01 and 60.

EVR Series Regulators

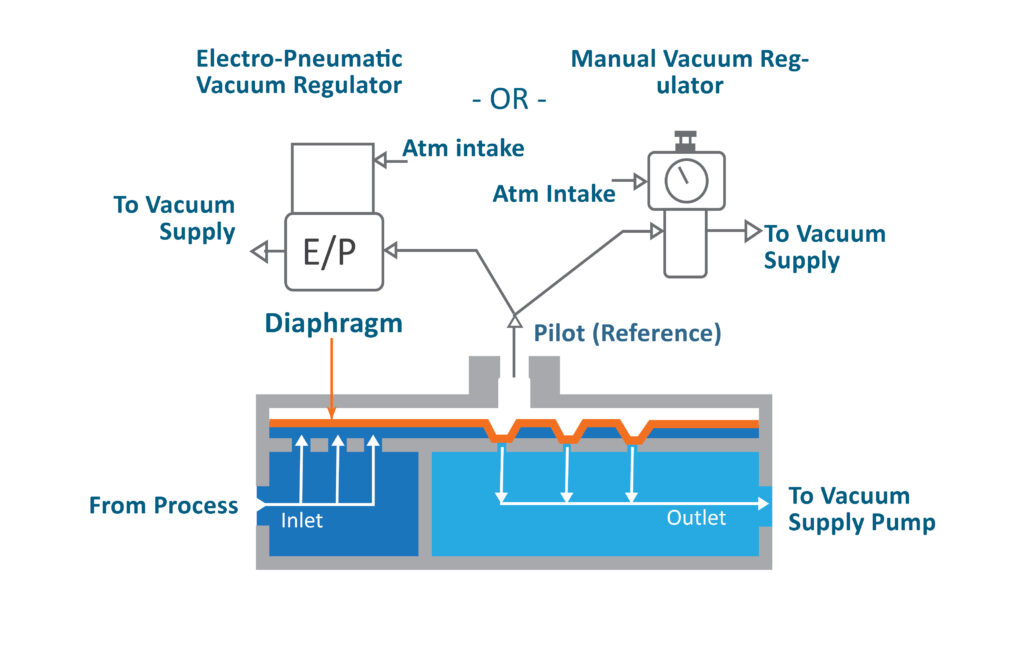

Like our unique back pressure regulator, the Equilibar vacuum regulator uses multiple orifices sealed by a flexible diaphragm. The Equilibar is dome-loaded by a pilot regulator setting the vacuum setpoint. As flow requirements change, the diaphragm moves a few millimeters to open and close over some or all of the orifices, providing instantaneous and frictionless control. The pilot setpoint pressure may be set with a manual or electronic pilot regulator.

Our vacuum regulators are available in sizes from 1/4″ to 4″ ports.

The Equilibar® vacuum regulator directly controls vacuum pressure by throttling flow between the vacuum supply pump and the process in order to precisely control the process vacuum to a specific setpoint. The EVR is a non-relieving regulator intended for processes where at least a very small gas flow is present at all times.

The EVR is intended for processes where at least a very small gas flow is present at all times. If your process is gas-tight, an Equilibar application engineer can discuss easy methods of providing a small gas bleed in the process.

Equilibar EVR is NOT a Vacuum Breaker



Videos
BD12 vacuum

EVR-BD24 Vacuum Regulator

High Speed Vacuum Control Valve

Downloads
Applications
Additional Specs
BD12 vacuum

EVR-BD24 Vacuum Regulator

Weight:

Dimensions:

Equilibar schematic for EVR-BDStainless Steel Models
DIM A – 13.00 in (330 mm)
DIM B – 5.3 in (135 mm)
Anodized Aluminum Models
DIM A – 12.5 in (318 mm)
DIM B – 5.9 in (150 mm)

PVC Models
DIM A – 15.00 in (381 mm)
DIM B – 8.8 in (224 mm)

Fitting/Threads:

Standard: NPT
Optional: BSPP; 150# Flanges; custom

How It Works
BD12 vacuum

EVR-BD24 Vacuum Regulator
