BD12 Industrial Back Pressure Regulator | Equilibar

BD12 Industrial Back Pressure Regulator

Port Sizes:
1.5"
Typical Pressure Ranges:
0 - 1 in WC0 - 28 in WC0 - 5 psi0 - 10 psi
0 - 20 psi0 - 30 psi
Body Material (Standard):
Stainless Steel 316/316L
Body Material (Optional):
Anodized Aluminum, PVC, Custom
Max CV:
14.3
Key Applications:

Contact Us

  • If multiple fluids or phases, list all.
  • This field is for validation purposes and should be left unchanged.
Product Description
BD24 Industrial Service Back Pressure Regulator

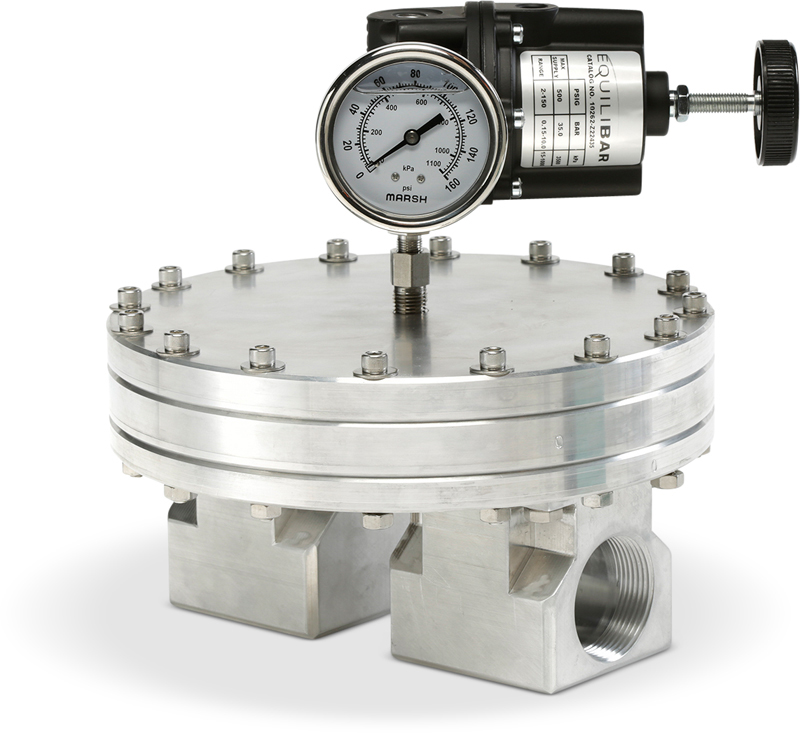

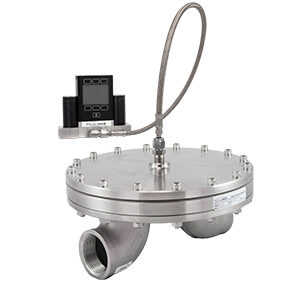

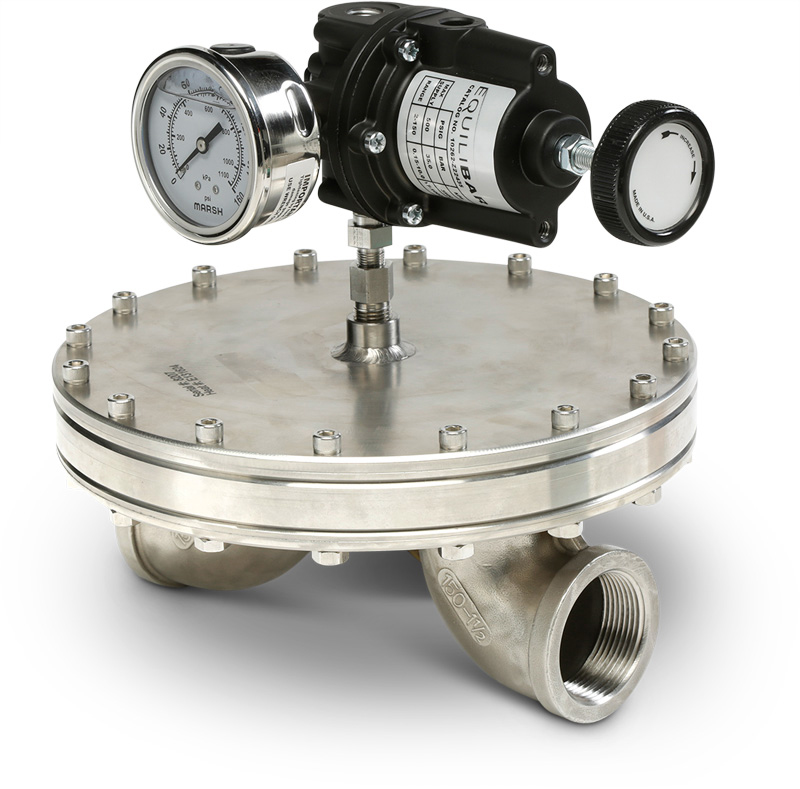

BD12 Industrial Back Pressure Regulator

The BD12 is the 1.5 inch port size version of the BD series precision back pressure regulators. While less commonly used than the larger 2 inch port BD16, the smaller BD12 is used where 1.5 inch pipe sizes are already in use. The BD12 is also useful if overall package dimensions or weight are a concern.

BD Series

BD Series Back Pressure Regulators are designed for use in industrial applications with high flow rates. Competitive valves are often cast from materials (such as carbon steel and cast iron) that do not handle aggressive chemicals and corrode after short periods of use. The BD Series is available in all SS316L and PTFE construction for the most demanding chemical applications.

The BD Series valves are extremely durable and built to last. With the diaphragm as the only moving part, maintenance of the BD regulator can be performed quickly on site for a very nominal expense, typically less than 10% of the cost of a new valve. Competitive valves have repair kits which cost up to half the price of a brand new valve and take hours to rebuild.

The BD Series is available in pipe sizes from 1.5″ to 4″ in pressure ranges up to 150 psig. They are true 1:1 dome loaded back pressure valves, meaning that 1 unit pilot pressure yields 1 unit upstream pressure. There are many advantages to using our dome loaded design, including extremely wide range of Cv with a single unit, frictionless operation with no cracking pressure, and no hysteresis as found in traditional spring loaded regulators.

Contact an application engineer for more information.

Videos
BD24 Industrial Service Back Pressure Regulator

BD12 Industrial Back Pressure Regulator

How Equilibar Back Pressure Regulator Works

Downloads
Applications
BD24 Industrial Service Back Pressure Regulator

BD12 Industrial Back Pressure Regulator

Additional Specs
BD24 Industrial Service Back Pressure Regulator

BD12 Industrial Back Pressure Regulator

Weight:

(SS) 43 lbs (19 kg); (AA) 14 lbs (6.5 kg);

Dimensions:

schematic of BD Series back pressure regulatorStainless Steel (SS) Models
DIM A – 9.00 in (241 mm)
DIM B – 3.9 in (99 mm)
Anodized Aluminum (AA) Models
DIM A – 7.6 in (193 mm)
DIM B – 3.7 in (94 mm)

PVC (P) Models
DIM A – 9.00 in (229 mm)
DIM B – 4.3 in (109 mm)

Fitting/Threads:

Standard: 1.5″ NPT
Optional: 1.5″ BSPP; 150# Flange; custom

How It Works
BD24 Industrial Service Back Pressure Regulator

BD12 Industrial Back Pressure Regulator
