B6R Supercritical CO2 Back Pressure Regulator

Port Sizes:
1/4"3/8"
Typical Pressure Ranges:
0 - 2000 psi0 - 2500 psi0 - 3000 psi0 - 4000 psi
0 - 5000 psi0 - 6000 psi
Body Material (Standard):
Stainless Steel 316/316L
Max CV:
0.64
Key Applications:

Contact Us

  • If multiple fluids or phases, list all.
  • This field is for validation purposes and should be left unchanged.
Product Description
photo of B6R supercritical back pressure regulator for product pages

B6R Supercritical CO2 Back Pressure Regulator

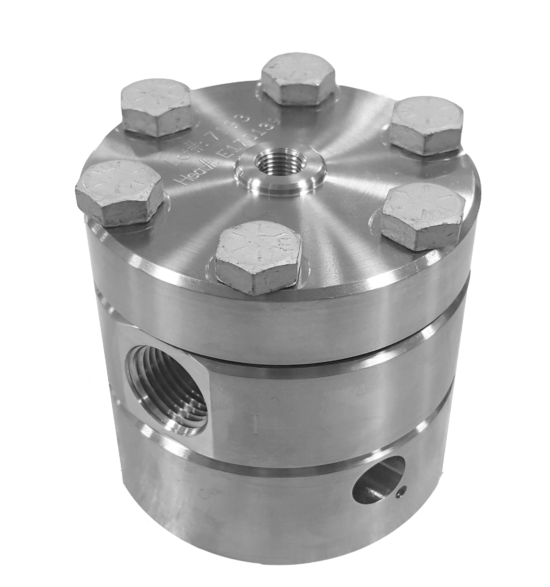

The Equilibar® B6R and BR models are variants of the popular Equilibar back pressure regulators. This series integrates technology to optimize for supercritical applications. These features maintain high precision control while reducing the Joule-Thomson effect of supercritical process fluids passing through the outlet orifices.

The key design feature of this regulator series is a downstream expansion cavity that provides a continuously increasing cross sectional area to eliminate convergence points for ice build-up during decompression.

The body is CNC machined from premium stainless steel 316/316L dual cert alloy bar stock. The shape of the internal passages prevents the accumulation of ice or viscous oils so that the B6R remains free to keep the pressure regulated at your target set point.

The flexible diaphragm membrane is the only moving part. This membrane directly seals against field of multiple parallel orifices for instantaneous and precise pressure control. Diaphragms can be ordered in polyimide, PTFE, or PEEK depending on the co-solvents used and the maximum process temperatures.

Specially designed O-ring grooves reduce stress during rapid decompression which increases O-ring life. O-ring choices include Buna-N, Viton, PTFE, and DuPont Kalrez as determined by your application.

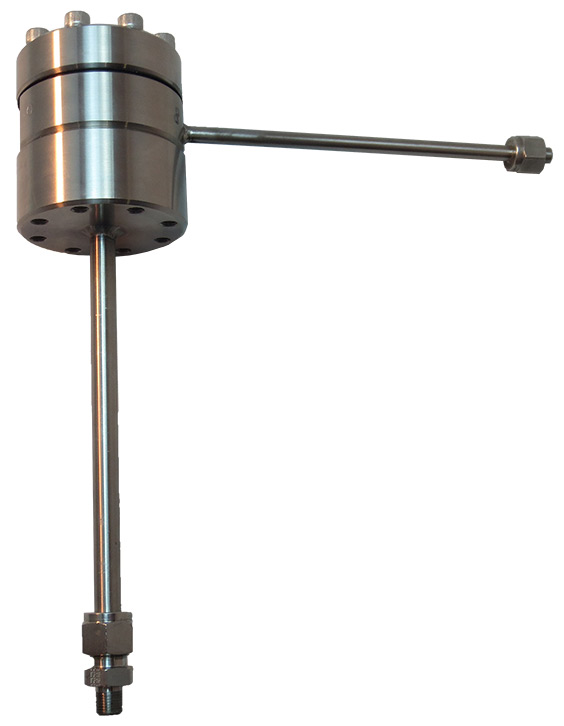

The BR regulator series has several fitting options, including tube stub, NPT and an outlet flange.

Contact an Equilibar application engineer to discuss your specific needs.

Videos
photo of B6R supercritical back pressure regulator for product pages

B6R Supercritical CO2 Back Pressure Regulator

Pressure Control Valve for Supercritical Fluid Extraction

Supercritical CO2 Pressure Regulator Resists Blockage

Evaporator Pressure Control to Improve Cycle Efficiency

How Equilibar Back Pressure Regulator Works

Downloads
photo of B6R supercritical back pressure regulator for product pages

B6R Supercritical CO2 Back Pressure Regulator

Applications
photo of B6R supercritical back pressure regulator for product pages

B6R Supercritical CO2 Back Pressure Regulator

Additional Specs
photo of B6R supercritical back pressure regulator for product pages

B6R Supercritical CO2 Back Pressure Regulator

Weight:

3.8 lbs (1.72 kg)

Dimensions:

Fitting/Threads:

Standard: 1/4″ or 3/8″ NPT
Optional: Custom Flanged Outlet; Tube Stub

How It Works
photo of B6R supercritical back pressure regulator for product pages

B6R Supercritical CO2 Back Pressure Regulator
