Higher Pressures for PTFE Regulators

PTFE Regulators for High Pressure

  • PTFE bpr with Kalrez o-rings

2015: Equilibar recently expanded its 100% PTFE Teflon regulator options to allow higher pressure ratings in liquid fluid service only (not gas service). Using 1/8″ and 1/16″ PTFE tubing, these regulators can now be rated to 250 psig and 500 psig, respectively. These units use PTFE/Glass diaphragms and FFKM wetted O-rings.

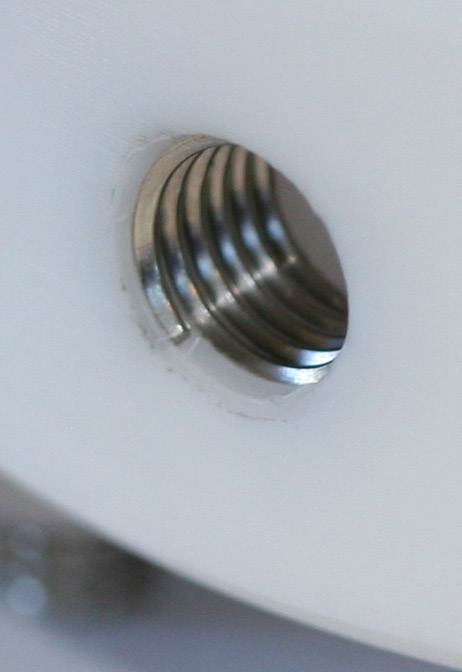

The LF1 back pressure regulator featured in the photograph contains a flat-bottom port with 1/4-28 threads. To improve the lifetime of the ports, the threads on the PTFE regulator body are reinforced with stainless SS316 Heli-Coil inserts.

The “cone and gripper” system shown is available from Cole Parmer and features a Tefzel fluoropolymer cone (wetted) and a glass-filled polypropylene gripper (non-wetted). This particular unit is intended for 1/8″ tubing and is rated for 250 psig.

Stainless Heli-Coil insert for PTFE regulator

Stainless Heli-Coil insert for PTFE regulator



Contact an Equilibar engineer to discuss your applications involving acids and aggressive chemicals.
