EPR 1000 High Precision Electronic Pressure Regulator

Port Sizes:
1/8"
Typical Pressure Ranges:
0 - 500 psi0 - 750 psi0 - 1000 psi
Key Applications:
  • Electronic pilot regulator for Equilibar® back pressure regulator
  • Benchtop lab testing where pressure control is required, but the customer does not want to also purchase a controller.
  • Research and catalysis

Contact Us

  • If multiple fluids or phases, list all.
  • This field is for validation purposes and should be left unchanged.
Product Description
Equilibar EPR electronic pressure regulator

EPR 1000 High Precision Electronic Pressure Regulator

The EPR 1000 is an electronic pressure regulator designed for electronic pressure control of inert gases. It is oftentimes used as a pilot regulator for Equilibar back pressure regulators when high precision electronic control is desired for an application.

  • Designed for static to low- flow applications of inert gas such as nitrogen or air
  • Compatible with all non-corrosive gases
  • Very high resolution with 0.25% accuracy
  • Digital or analog communications
  • Direct control from the keypad
  • Controls pressures up to 1,000 psig
Videos
Equilibar EPR electronic pressure regulator

EPR 1000 High Precision Electronic Pressure Regulator

Watch the video below to see how the EPR 3000 regulator works. The EPR 1000 will work in a similar way by providing control up to 1000 psi.

Downloads
Equilibar EPR electronic pressure regulator

EPR 1000 High Precision Electronic Pressure Regulator

Applications
Equilibar EPR electronic pressure regulator

EPR 1000 High Precision Electronic Pressure Regulator

  • Electronic pilot regulator for Equilibar® back pressure regulator
  • Benchtop lab testing where pressure control is required, but the customer does not want to also purchase a controller.
  • Research and catalysis
Additional Specs
Equilibar EPR electronic pressure regulator

EPR 1000 High Precision Electronic Pressure Regulator

Weight:

2.4 lbs (1.09 kg)

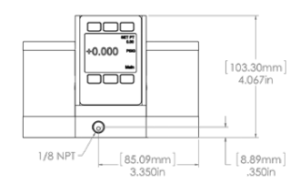

Dimensions:

4.067”H x 5.875”W x 1.050”D

Fitting/Threads:

1/8” NPT Female

How It Works
Equilibar EPR electronic pressure regulator

EPR 1000 High Precision Electronic Pressure Regulator

How it Works

Two valve pressure controllers include a “fill” and “vent” valve. Outlet pressure is sensed and controlled through a type of PID loop. While many industrial pressure controllers utilize binary fill and vent valves, or analog fill valves with binary vent valves, the EPR-3000 uses two analog valves for highly precise and resolute control throughout the entire range.

EPR Schematic for EPR-3000
