EHP Electronic High Pressure Controller

Port Sizes:
1/8"
Max Pressure (Std Body Mat’l)
500 psig / 35 bar(g)
Body Material (Standard):
Anodized aluminum Manifold; Nickel plated brass Valves; Viton Elastomers
Key Applications:

A key application for the EPC is as an electronic reference pressure controller for an Equilibar dome-loaded back pressure regulator  where precision and response time are critical.

The EHP  can be used to control pressure in applications up to 500 psi / 35 bar

Product Description
EHP electronic presure controller for 500 psig

EHP Electronic High Pressure Controller

The EHP is a high resolution digital high pressure controller with integrated microcontroller for controlling air or inert gas for a variety of applications and is recommended for use in controlling the pilot reference pressure for Equilibar dome-loaded back pressure regulators. It provides a regulated output pressure based on an electrical command signal input and controls in a range of calibrated pressures up to 500 psig / 35 bar(g).

The EHP comes standard with 0 -10 VDC signal command and can be configured for 4-20 mA differential or 3.3V serial digital command signals. It is a complete closed loop control valve consisting of two internal solenoid valves, a manifold, an electronic control circuit board, and a pressure transducer all contained in a protective IP65 rated housing.

All models are designed for use with air or inert gases in non-hazardous/non-explosive environments. For information about ATEX rated controllers, please contact us.

If you are looking for a high resolution digital pressure controller for a lower pressure range, below 150 psig / 10 bar(g), please visit the EPC product page.

Videos
EHP electronic presure controller for 500 psig

EHP Electronic High Pressure Controller

Downloads
EHP electronic presure controller for 500 psig

EHP Electronic High Pressure Controller

Applications
EHP electronic presure controller for 500 psig

EHP Electronic High Pressure Controller

Additional Specs
EHP electronic presure controller for 500 psig

EHP Electronic High Pressure Controller

Weight:

Dimensions:

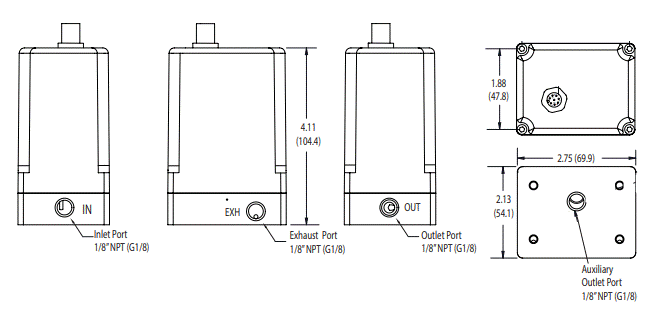

dimensional drawing of EHP electronic high pressure controller

Fitting/Threads:

Standard: 1/8″ NPT female

How It Works
EHP electronic presure controller for 500 psig

EHP Electronic High Pressure Controller

The EHP is a complete closed loop controller consisting of two internal solenoid valves, a manifold, an electronic control circuit and a pressure transducer all contained in a protective IP65 rated housing. One solenoid valve functions as inlet control allowing supply media into the system which increases the controlled pressure. The other solenoid valve acts as the exhaust and will decrease the controlled pressure by venting to atmosphere.

The controlled output pressure is measured by the onboard pneumatic pressure sensor and compared to the desired (target) pressure by the EHP’s internal electronics. When the circuit detects a difference between the targeted command pressure and the actual output pressure, the circuit will energize the appropriate solenoid valve to raise or lower the pressure back to the targeted value.
