H6P High Pressure Back Pressure Regulator

Port Sizes:
1/16"1/8"1/4"
Typical Pressure Ranges:
0 - 4000 psi0 - 5000 psi0 - 6000 psi
Body Material (Standard):
Stainless Steel 316/316L
Body Material (Optional):
Hastelloy C276, Custom
Max CV:
(H6P0): 0.01; (H6P1, H6P2): 0.07
Key Applications:

Contact Us

  • If multiple fluids or phases, list all.
  • This field is for validation purposes and should be left unchanged.
Product Description
U6L High Pressure Ultra Low Flow Back Pressure Regulator

H6P High Pressure Back Pressure Regulator

The H6P is a precision back pressure regulator for use in applications with a maximum working pressure between 3000 psi (207 Bar) and 6000psi (413 Bar). The H6P uses Equilibar’s flexible multi orifice design that allows it to accurately control the upstream pressure in the widest variety of application conditions.

H6P regulators come in 1/16″, 1/8″, and 1/4″ port sizes.

Equilibar’s Research Series is designed to meet the demanding requirements catalyst research and high pressure reactor control applications. All our Research products hold stable pressure across very wide flow ranges, and can handle liquids, gases, or multi-phase mixtures. These products are commonly used with highly aggressive chemicals, and can perform at temperatures up to 450C.

Equilibar Research Series units are 1:1 dome-loaded, meaning that a pilot pressure must be supplied to the dome of the BPR equal to the desired set-point. This pilot pressure can be supplied by a manual gas regulator, or by an electronic pressure regulator for computer automation.

The H6P Series are part of Equilibar’s patented multi-orifice design, in which more orifices open up as needed to accommodate increasing flow requirements. This design offers the highest possible precision in multi-phase flow applications.

Not sure which back pressure regulator is right for your application?
Perhaps you are not able to find what you are after?
Contact one of our application engineers here: https://www.equilibar.com/contact/

Videos
U6L High Pressure Ultra Low Flow Back Pressure Regulator

H6P High Pressure Back Pressure Regulator

Control Valve with Wide Flow Rate Range

Electronic Back Pressure Regulator for High Pressures

Stainless Steel / PTFE / Hastelloy Back Pressure Regulators

How Equilibar Back Pressure Regulator Works

How Equilibar Back Pressure Regulator Works

Downloads
Applications
U6L High Pressure Ultra Low Flow Back Pressure Regulator

H6P High Pressure Back Pressure Regulator

Additional Specs
U6L High Pressure Ultra Low Flow Back Pressure Regulator

H6P High Pressure Back Pressure Regulator

Weight:

2.4 lbs (1.09 kg)

Dimensions:

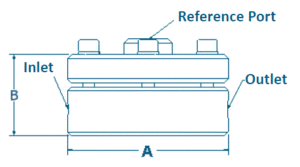

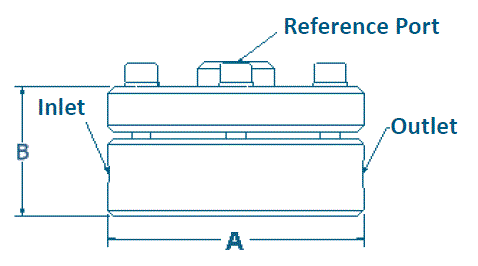

Dimensional Sketch of GS Series Back Pressure Regulator



Dim A: 2.8 in (70 mm)
Dim B: 1.7 in (42 mm)





Fitting/Threads:

Standard: NPT or HPLC (H6P0)
HiP (High Pressure); BSPP; Swagelok VCO®; Swagelok VCR®; Tube Stub; HPLC; Autoclave Speed‐Bite; custom

How It Works
U6L High Pressure Ultra Low Flow Back Pressure Regulator

H6P High Pressure Back Pressure Regulator
