LPR2 Ultra Low Pressure Reducing Regulator - Precision Back Pressure Regulators and more

LPR2 Ultra Low Pressure Reducing Regulator

Port Sizes:
1/4"
Typical Pressure Ranges:
0 - 7 in WC0 - 10 in WC0 - 28 in WC
Key Applications:
  • Lowest pressure range available in its class
  • For low-flow or no-flow applications only
  • Extremely sensitive and stable
  • For air and inert gases*

Contact Us

  • If multiple fluids or phases, list all.
  • This field is for validation purposes and should be left unchanged.
Product Description
low pressure regulator

LPR2 Ultra Low Pressure Reducing Regulator

The Equilibar LPR2 is a manually adjustable pressure reducing regulator for ultra-low pressures in applications that are static or require only low flow rates. The LPR2 accepts a 5-30 psig regulated gas supply and regulates the pressure to a reduced value that matches the setting on the adjustable hand knob. The LPR2 is a non-relieving regulator. A small bleed to atmosphere orifice may be integrated for applications that do not consume downstream gas.

Videos
low pressure regulator

LPR2 Ultra Low Pressure Reducing Regulator

High Precision Ultra Low Pressure Reducing Regulator – LPR2

Equilibar Low Pressure High Flow Regulator

Downloads
Applications
low pressure regulator

LPR2 Ultra Low Pressure Reducing Regulator

  • Lowest pressure range available in its class
  • For low-flow or no-flow applications only
  • Extremely sensitive and stable
  • For air and inert gases*
Additional Specs
low pressure regulator

LPR2 Ultra Low Pressure Reducing Regulator

Weight:

1.2 lbs (0.54 kg)

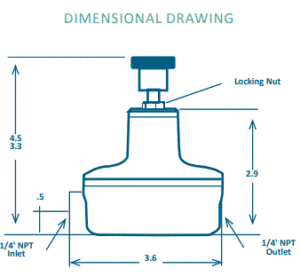

Dimensions:







Dimensions in inches







Fitting/Threads:

Standard: NPT

How It Works
low pressure regulator

LPR2 Ultra Low Pressure Reducing Regulator
