QPV Electronic Pressure Regulator

Port Sizes:
1/8"
Typical Pressure Ranges:
0 - 1 in WC0 - 7 in WC0 - 10 in WC0 - 28 in WC
0 - 0.7 psi0 - 1.4 psi0 - 2 psi0 - 3 psi
0 - 5 psi0 - 10 psi0 - 20 psi0 - 30 psi
0 - 60 psi0 - 100 psi0 - 150 psi
Body Material (Standard):
stainless steel
Key Applications:

A common application for the QPV is to pilot operate an Equilibar® Back Pressure Regulator (BPR).

  • For air and inert gases
  • Min range: 0-0.3 psig, vacuum
  • Max range: 0-150 psig
  • Superior proportional valve action
  • Accuracy: 0.1% – 0.5% FS
  • Resolution: 0.005% – 0.2% FS
  • Lowest available pressure range in class
  • Low flow (ideal for providing set-point signal)
  • Optional DeviceNet / Serial communication
Product Description
Photo of Equilibar QPV Electronic Pressure Regulator

QPV Electronic Pressure Regulator

The Equilibar QPV is a high resolution electronic pressure regulator providing a regulated output pressure that is proportional to an electrical command signal input. The QPV is available in a wide range of calibrated pressure ranges covering vacuum through 150 psig /10 bar(g). The QPV is available in either 0 -10 VDC or 4-20 mA analog signal types.

The QPV is a relatively low flow regulator, making it a great choice any time low flow rates or small volumes require precise pressure control. The QPV is often used to provide the pilot pressure signal to the dome of either an Equilibar® back pressure regulator or an Equilibar vacuum regulator. The QPV can then be used to electronically control back pressure or vacuum pressure in line sizes from 1/8 inch through 4 inch by pilot operating the appropriately sized regulator.

 *Not intended for hazardous/explosive environments. They are meant for use with air or inert gases only.
Videos
Photo of Equilibar QPV Electronic Pressure Regulator

QPV Electronic Pressure Regulator

QPV High Resolution Electronic Pressure Regulator

Downloads
Applications
Photo of Equilibar QPV Electronic Pressure Regulator

QPV Electronic Pressure Regulator

  • A common application for the QPV is to pilot operate an Equilibar® Back Pressure Regulator (BPR).
  • For air and inert gases
  • Min range: 0-0.3 psig, vacuum
  • Max range: 0-150 psig
  • Superior proportional valve action
  • Accuracy: 0.1% – 0.5% FS
  • Resolution: 0.005% – 0.2% FS
  • Lowest available pressure range in class
  • Low flow (ideal for providing set-point signal)
  • Optional DeviceNet / Serial communication
Additional Specs
Photo of Equilibar QPV Electronic Pressure Regulator

QPV Electronic Pressure Regulator

Weight:

1.2 lbs (0.54 kg)

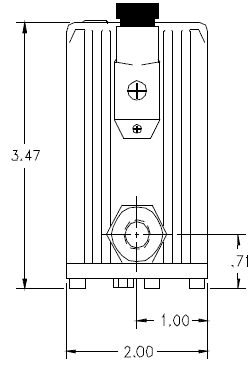

Dimensions:

















Fitting/Threads:

Standard: 1/8″ NPT female

How It Works
Photo of Equilibar QPV Electronic Pressure Regulator

QPV Electronic Pressure Regulator

The QPV is a complete closed loop control valve consisting of two internal solenoid valves, a manifold, an electronic control circuit
board, and a pressure transducer all contained in a protective IP65/NEMA4 housing. Pressure is controlled by the use of two solenoid valves. One valve functions as inlet control and acts to allow supply media into the system to increase the controlled pressure. The other solenoid valve acts as the exhaust and will decrease the controlled pressure by venting to atmosphere. The inlet solenoid valve operates in a proportional manner to the current supplied by the QPV’s electronic control circuit. This variable orifice affect allows precise control of pressure at low flow conditions and avoids the digital steps of traditional ON/OFF solenoids. The ability to vary the inlet solenoid valve orifice opening in an analog fashion allows the QPV1 to control pressure with extremely high resolution. The exhaust solenoid is a standard ON/OFF solenoid and allows excess media to be vented from the system.

The regulated pressure output is measured by a pressure transducer internal to the QPV1. This pressure transducer provides a feedback signal to the QPV1’s electronic control circuit. The control circuit compares the internal sensor feedback signal to the command signal input. Any difference between the two signals causes the appropriate solenoid valve to open, allowing flow in or out of the system. Accurate pressure is maintained by controlling these two valves.
