IC16 Industrial Back Pressure Regulator

The IC16 is a 2″ valve in the Industrial Collection (IC) back pressure regulators. Cv range is 1E-2 to 30. Max pressure is 300 psig / 20.6 bar(g) at 327C (Max Temp) and 380 psig / 26.2 bar(g) at room temperature.

IC Series

These industrial valves provide best-in-class performance in a compact size and are easily customized for a variety of applications.

Key Advantages of the IC Industrial Valve Series:

• Short lead times – Standard lead times of 2-3 weeks for in-stock valves
• High pressure options – New offering of class 150 and 300, designed to ASME B16.34 standards allowing drop-in replacement of underperforming valves from other brands.
• Premium materials – Standard offering of dual-certified CF3M/1.4409 stainless steel body material with Hastelloy and most nickel-based alloy options available upon request.
• Flexible process connection options – NPT, ANSI RF Flange, and tri-clamps stocked standard. DIN flanges, BSPP threaded ports, and other connections available upon request.

Currently available in 1.5″, 2″ and 3″ ports in CF3M/1.4409 stainless steel

• Electrolysis emergency shutdown valves
• Electrolysis and Electrolyzer Pressure Control
• Fuel Cell Pressure Regulator
• Fluid Control for Semiconductor Fabrication

Weight:

NPT =34 lbs; Tri-clamp =36 lbs; 150# flange =48 lbs; 300# flange =51 lbs

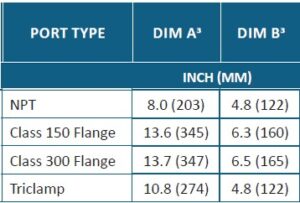

Dimensions:

Fitting/Threads:

NPT;
ANSI Class 150 Flange;
ANSI Class 300 Flange;
Tri-clamp
