Equilibar® NL Series
Precision Back Pressure Regulators

• Rugged industrial design

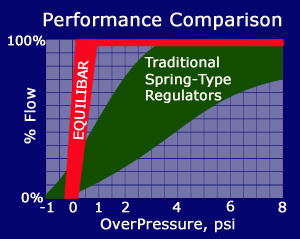

• 5X the precision of standard spring regulators
• Unique, patented technology
• Frictionless design for ultra fast response
• Pressures from 0.02 to 1000 psi

NL Series Brochure (pdf)

Dome Loaded Design

The Equilibar® achieves its incredible performance by the use of a fluid setpoint signal connected to its top port.

Manual Applications

For manual applications, the Equilibar can be supplied with an AirSpring Set-Point Kit for easy knob adjustment (shown above).

Automatic Applications

For automatic applications, an electro-pneumatic regulator can provide the set-point signal to the Equilibar® .

Other Equilibar® Styles SC Series The Equilibar® SC Series offers the same great precision as the NL series with different options: Clamp construction for quick cleaning & inspection Dual inlet ports for increased flexibility Hygeinic version available Pressures to 100 psi and above NL Series details

Available Sizes and Porting

• NPT (standard), BSPP, BSPT, others
• 1/4", 3/8", 1/2" 3/4", 1", 1 1/2", 2"

Available Body Materials

• SS316
• PVC
• PTFE
• Others available by request

Available Diaphragm Materials

• Viton
• PTFE/Glass
• PolyEthylene
• Buna N
• EPDM

NL Series Brochure (pdf)

More about Equilibar back pressure technology
